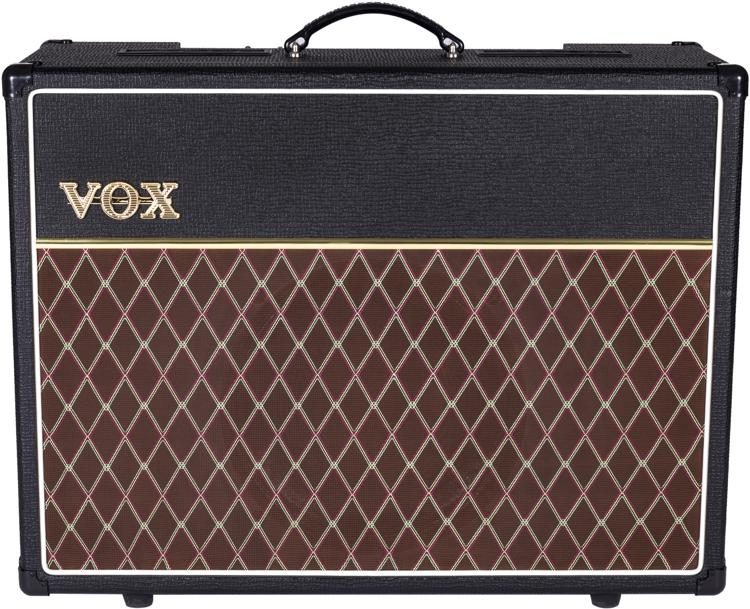

Vox AC30 OneTwelve AC30S1 30W 1x12" Tube Guitar Combo Amp
The Vox AC30S1 is a 30-watt all-tube guitar amp with one channel and one 12" speaker. Vox pared the AC30 down to its essence, the Top Boost channel, to make an amp lighter than the two-speaker AC30s and easy to carry to rehearsals.
What sets it apart
- Single channel based on the Top Boost
- Two 12AX7s and four EL84s
- 12" Celestion VX12 speaker
- Spring-style digital reverb
- Effects send and return
- 24.5 kg
One channel, the right one
The Top Boost is the channel people hear when they think of an AC30: sparkling cleans through to thick overdrive. The AC30S1 keeps only that one, with five knobs: Gain, Treble, Bass, Reverb and Volume. No channel to choose and no footswitch needed to start playing.
Built for the road
With a single Celestion VX12 and a more compact cabinet, it weighs 24.5 kg. The effects send and return take delays and modulation, and the external speaker output lets you add a cabinet. The digital reverb emulates a spring tank.
Specifications
| Power | 30 W RMS into 16 Ω |
|---|---|
| Speaker | 1 × 12" Celestion VX12 |
| Tubes | 2 × 12AX7, 4 × EL84 |
| Controls | Gain, Treble, Bass, Reverb, Volume |
| Connections | Input, effects send and return, external speaker |
| Dimensions | 658 × 265 × 550 mm |
| Weight | 24.5 kg |
What it's for
- Rehearsals where you carry your own amp
- Bar gigs
- Studio work with AC30 Top Boost tone
- A base for a pedalboard in the loop
Compared with other manufacturers
Other manufacturers offer 1 × 12 tube combos:
| Manufacturer | Model | How it differs |
|---|---|---|
| Vox | AC30S1 | 30 W, one channel, Celestion VX12 |
| Orange | TH30 Combo | Clean and Dirty channels, Shape control |
| Blackstar | HT-20R MkIII | 20 W, 2 × EL84, drops to 2 W |
| Marshall | Origin20C | 20 W, EL34s, 10" speaker |
Frequently asked questions
- AC30S1 or AC30C2?
- The AC30S1 has one channel (Top Boost), one 12" and digital reverb; the AC30C2 has two channels, two 12" speakers and a tremolo, and it weighs more.
- How much does the AC30S1 weigh?
- 24.5 kg, at 658 × 265 × 550 mm.
- Does it have an effects loop?
- Yes, an effects send and return on the back panel.
- Which tubes does it use?
- Two 12AX7s in the preamp and four EL84s in the power section.
