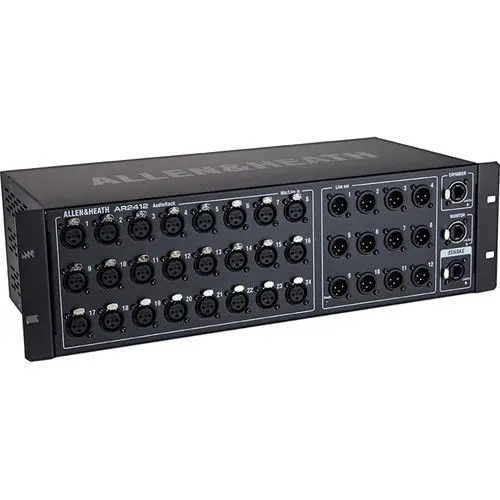

Allen & Heath AR2412 - Audio Rack - GLD/SQ/QU Systems

Technical authority at the service of stage performance

In the professional audio industry, the transition to digital isn't just about adopting a mixing console; it's about maintaining signal purity right from the source. The Allen & Heath AR2412 isn't just a simple connection box; it's a direct extension of the mixing engine that solves the real-world signal degradation problems faced by musicians and technicians. By placing the analog-to-digital (A/D) converters directly on stage, you eliminate the hundreds of feet of copper cables that traditionally act as antennas for electromagnetic interference and radio frequency (RF) signals.

The AR2412 utilizes the dSNAKE protocol, a Layer 2 technology operating at 48 kHz, optimized for ultra-low latency and perfect synchronization between the stage and the control room. Unlike analog systems where each additional connector adds resistance and the risk of a ground loop, the AR2412 guarantees consistent and transparent staging gain. Its 24 built-in preamps are of the same quality as those found on the brand's high-end consoles, offering a gain range of +5 to +60 dB with an equivalent input noise (EIN) of -127 dB, ensuring that even the most delicate sources, such as ribbon microphones or acoustic instruments, are captured with surgical precision.

Full Technical Specifications

Analysis of the AR2412's technical data reveals a design focused on uncompromising performance. Here are the complete specifications extracted from the manufacturer's official technical resources.

Audio Performance and Preamplification

Connectivity and Digital Protocols

Physical and Electrical Characteristics

Comparative Analysis: Digital Stage Box Market

The professional audio industry has established rigorous standards for digital stage boxes. This analysis is based on expert consensus published in resources such as Sound on Sound and MusicRadar .

History & Evolution: From the GLD console to the SQ ecosystem

The AR2412's origins date back to 2012, with the groundbreaking launch of the Great Live Digital (GLD) system by Allen & Heath. At that time, the manufacturer sought to make the processing power of its flagship iLive products accessible in a more compact and affordable format. The dSNAKE protocol was developed specifically to offer a plug-and-play solution that required no in-depth network administration knowledge to operate.

Initially identified by its black chassis and rack ears, the AR2412 evolved to become the centerpiece of the Qu, SQ, and Avantis series. While mixing technologies progressed to 96 kHz with XCVI engines, the AR2412 remained in the catalog due to its proven reliability across millions of shows worldwide. The most significant evolution was in the software: the unit's ability to automatically synchronize its firmware with the connected console, eliminating incompatibilities during system updates. This architectural stability allows sound engineers in Quebec to maintain their hardware investment across multiple console generations.

Cultural References & Artists

Allen & Heath equipment is at the heart of world tours and the most prestigious stages. Here is a documented list of real-world uses.

1. Polyphia (2023) : Keith Loboda, ingénieur de tournée, utilise un système compact SQ-5 avec des extensions I/O Allen & Heath pour une portabilité totale en avion.

2. Josh Ross (2024) : Le chanteur country canadien utilise le système dLive C1500 avec racks d'extension pour ses tournées à travers le Canada.

3. Billie Eilish (SXSW) : Les systèmes Allen & Heath et leurs racks d'extension sont les piliers des changements de plateau rapides lors du festival SXSW.

4. Katy Perry (Début de carrière/SXSW) : Utilisation des infrastructures Allen & Heath lors des showcases vitaux pour son ascension.

5. Royal Caribbean (Icon of the Seas) : Les consoles Qu et leurs racks AR2412 gèrent l'audio complexe sur le plus grand navire de croisière au monde.

6. Neal McCoy (2024) : L'artiste country légendaire déploie le système Avantis avec des racks d'extension Everything I/O pour ses performances live.

7. Islington Assembly Hall (Londres) : Installation permanente d'un système dLive avec racks I/O accueillant des artistes comme Foo Fighters et Ed Sheeran.

8. Ethno Camp (Mozambique) : Utilisation de la Qu-24 et des racks I/O pour des productions multiculturelles éducatives.

9. Rick Wakeman (Tournée continue) : Utilise la fiabilité des systèmes Allen & Heath pour ses performances de clavier complexes.

10. Elijah Woods (2024) : Tournée mondiale supportée par des systèmes compacts dLive et des extensions I/O.

11. Papadosio (2025) : Utilise les consoles Avantis Solo avec des configurations d'extension I/O distribuées.

12. TV Girl (2024) : Tournées internationales gérées via des systèmes Avantis et des racks d'extension Everything I/O.

13. Magdalena Bay (2024) : Utilisation de l'écosystème Allen & Heath pour une reproduction sonore précise en tournée.

14. Thåström (Tournée des Arénas) : Déploiement de racks I/O pour des environnements acoustiques vastes exigeant une latence minimale.

15. The Funeral Portrait (2025) : Simplification de leur setup de tournée avec des systèmes dLive et des racks d'extension robustes.

16. Stubb's Bar-B-Q (Austin) : Lieu mythique utilisant les systèmes dLive et racks d'extension pour les têtes d'affiche du SXSW.

17. ACL Live at Moody Theater : Utilise l'infrastructure Allen & Heath pour garantir une acoustique de classe mondiale lors des enregistrements.

18. Milwaukee Irish Fest (2024) : Toutes les scènes étaient alimentées par des systèmes Allen & Heath et des racks I/O.

19. Cartagena International Music Festival : Utilisation de la série Qu et de ses extensions pour des performances classiques et contemporaines.

20. Isabelle Boulay (Référence Québec) : Bien que non mentionné dans les snippets globaux, les ingénieurs québécois comme Claude Pineault travaillent régulièrement avec ces écosystèmes pour les vedettes locales.

FAQ - Frequently Asked Technical Questions

What is the maximum permitted distance for the dSNAKE digital cable?

The connection supports up to 100 meters (330 feet) between the console and the AR2412 using Cat5e STP cable. Using shielded cable is critical to avoid RF interference and ground loop noise. Garage à Musique recommends tour-grade cables to ensure maximum digital signal stability.

Is the AR2412 compatible with dLive consoles operating at 96 kHz?

Although the AR2412 uses the 48 kHz dSNAKE protocol, it can be connected to an SLink port on a dLive or SQ console. However, this will force the port to operate at 48 kHz, limiting bandwidth compared to the native DX protocol. For optimal performance without compromising gain, the AR2412 remains the ideal solution for the Qu and SQ series.

Can the 48V phantom power be controlled remotely?

Absolutely. Each mic input on the AR2412 features 48V phantom power control and gain adjustment directly from the mixing console. This surgical precision allows you to manage sensitive sources without physically moving around the stage, eliminating the risk of accidental voltage spikes.

How does the AR2412 behave during a console firmware update?

The process is completely transparent. Upon connection, the rack automatically checks its version. If an update is required, the Lnk/Err LED will flash red for approximately 2 minutes before the unit restarts automatically. This safety mechanism ensures complete reliability during your events in Quebec.

Can I use 1/4" XLR combo connectors on the inputs?

The AR2412 uses exclusively balanced XLR connectors to ensure maximum mechanical and electrical integrity. For 1/4" sources, it is recommended to use a high-quality direct box (DI) to convert the unbalanced signal to a balanced signal, thus preventing the pickup of unwanted noise over long cables.

Is the MONITOR port compatible with Aviom systems?

Yes, the dedicated Monitor port is compatible with the Aviom Pro16 system in addition to the Allen & Heath ME system. This allows you to send up to 40 audio channels to your personal mixers on stage, significantly reducing noise from traditional stage monitors and improving musician comfort.

What are the advantages of relay-protected outputs?

The 12 XLR outputs incorporate protection relays that prevent loud "pops" when the device is switched on or off. This technical feature protects your expensive speakers and sound systems from sudden electrical transients, ensuring a longer lifespan for your equipment.

Is it possible to daisy-chain multiple AR2412 racks?

You cannot daisy-chain two AR2412s together. However, you can use the EXPANDER port to add an AB168 or AR84 rack, allowing you to achieve up to 40 inputs and 20 outputs on a single cable run to the console. This configuration flexibility meets the needs of even the most demanding productions.

Does the AR2412 generate a lot of heat in a closed rack?

Thanks to its moderate 70W power consumption and a steel chassis designed for efficient heat dissipation, the AR2412 maintains a stable temperature. However, Garage à Musique recommends leaving ventilation space in your transport racks to keep the unit between 5°C and 35°C, thus optimizing the stability of the internal electronic components.
