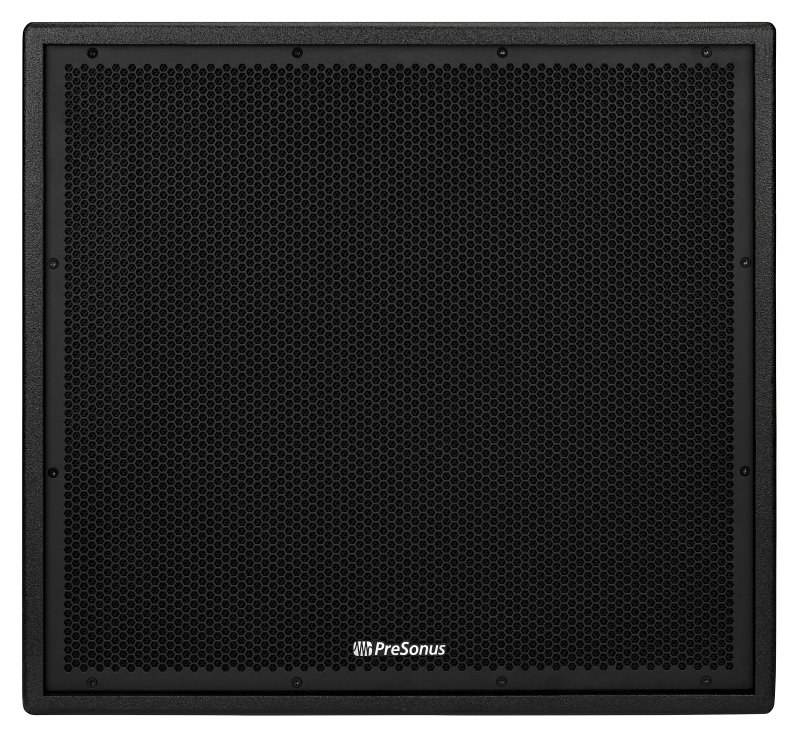

PreSonus CDL Sub18 18" Powered Subwoofer
The PreSonus CDL Sub18 is an 18" powered subwoofer that adds deep, tight low end to a sound system. Designed as the companion to the CDL10P and CDL12P, it also pairs with other brands' loudspeakers thanks to its variable low-pass filter.
What sets it apart
- 18" woofer, 4" voice coil, 7 mm of excursion before over-excursion
- Class D amplification, 2,000 W peak (1,000 W RMS)
- Variable 50 to 150 Hz low-pass filter to match any loudspeaker
- Polarity invert for building a cardioid setup
- M20 threaded pole mount and M10 fly points
Low end you tune to the room
A menu gives access to the variable low-pass, the output power preset and polarity invert. Two presets extend the bottom of the spectrum, and a mono mode simplifies cabling several subs in a stereo system.
A pole on this sub can carry one or two CDL-series loudspeakers; for more low end, stack two CDL Sub18s. With a CDL loudspeaker, PreSonus supports a pole of up to 79 cm.
Flying the sub
The M10 points are for suspension, with the M10-AI kit recommended by PreSonus and at least four points per sub. No other loudspeaker may be hung from a CDL Sub18.
Specifications
| Woofer | 18", 4" voice coil |
|---|---|
| Power | 2,000 W peak (1,000 W RMS), Class D |
| Maximum output | 135 dB |
| Low-pass filter | Variable, 50 to 150 Hz |
| Input and output | 1 balanced XLR input, 1 XLR direct output |
| Controls | Output level, low-pass, power preset, polarity |
| Power supply | 100 to 240 VAC, locking in and out connectors |
| Dimensions (H x W x D) | 517 x 622 x 634 mm |
| Weight | About 48 kg |
What it's for
- Low-end reinforcement under a pair of CDL10Ps or CDL12Ps
- DJ night where electronic music needs the bottom octave
- Rock or pop band that wants to feel the kick drum
- Pair of subs in cardioid to tame low end on stage
Compared with other manufacturers
18" powered subwoofers from well-known manufacturers. The CDL Sub18 stands out with its direct integration with CDL loudspeakers and its fly points.
| Model | Rated power | Notable feature |
|---|---|---|
| PreSonus CDL Sub18 | 2,000 W peak | M20 mount for two CDL loudspeakers, M10 points |
| QSC KS118 | 3,600 W | Pre-programmed cardioid mode, up to 15 dB of rear rejection |
| JBL PRX918XLF | 2,000 W peak, 1,000 W RMS | 134 dB maximum SPL |
| Electro-Voice EKX-18SP | 1,300 W | High-efficiency Class D amplifier |
Frequently asked questions
- Can I pair the CDL Sub18 with another brand's loudspeakers?
- Yes. Its variable low-pass sets the transition with any full-range loudspeaker, and its XLR direct output passes the signal on to the top box or to another sub.
- Is there a P-series subwoofer for the CDL12P?
- PreSonus presents the CDL Sub18 as the companion to the CDL12P and CDL10P: flown or ground-stacked, they form a system with an even response across the spectrum.
- Can the CDL Sub18 be flown?
- Yes, through its M10 points, with at least four suspension points and the recommended M10-AI kit. PreSonus forbids hanging other loudspeakers below the sub.
