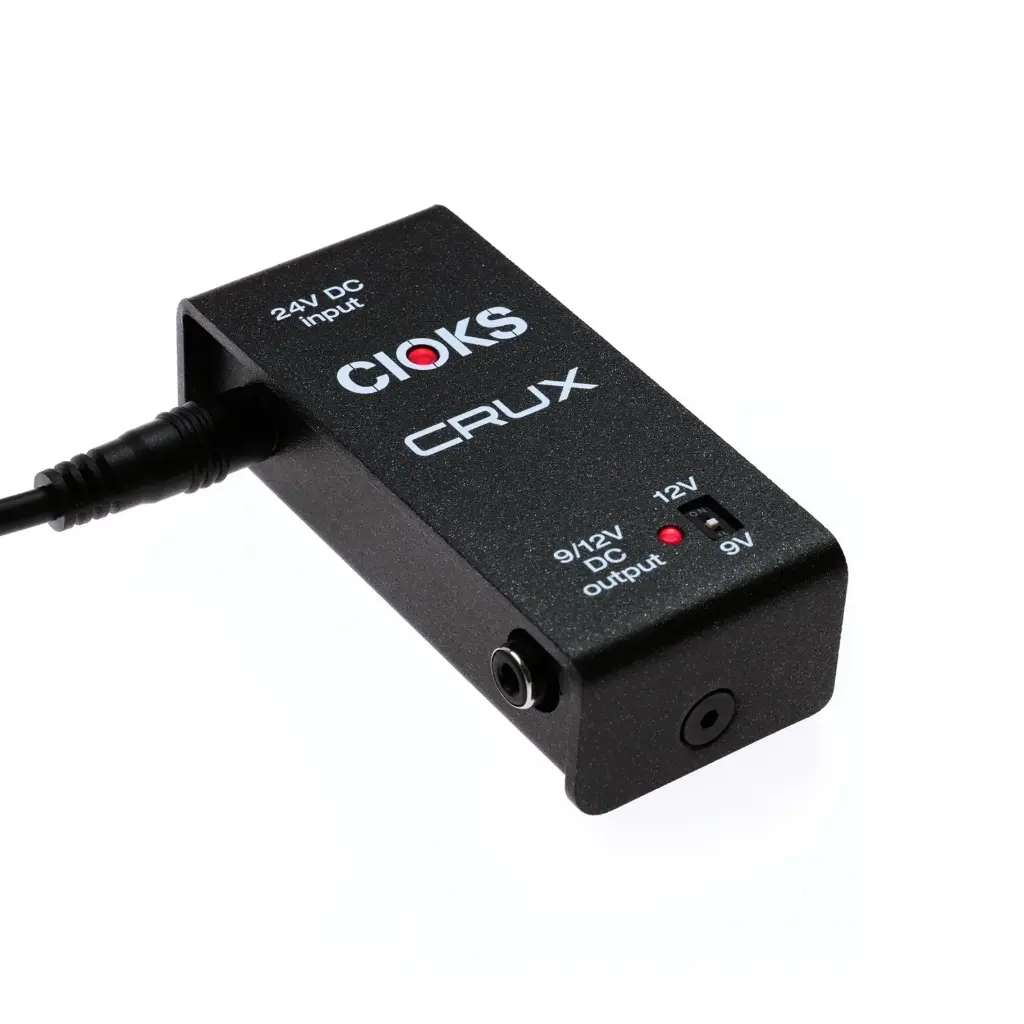

Cioks Crux Expander - 9V/12V Versatile Power Supply
Discover the CIOKS CRUX, the ultimate ultra-slim profile adapter that converts the 24V output of your DC7 into a super powerful source, ideal for flawlessly powering your most demanding multi-effects like the Neural DSP Quad Cortex.
This content will be shared across all product pages.
Unleash the full potential of your DC7
At Garage à Musique , we're seeing more and more musicians adding high-powered modeling pedals to their pedalboards . The problem? Devices like the Neural DSP Quad Cortex or the Line 6 HX Stomp demand an astronomical amount of power. Until now, you either had to use the bulky original power supply and waste space, or sacrifice three or four outputs of your CIOKS DC7 with adapter cables.
The CIOKS CRUX changes everything. This small expansion module plugs directly into the 24V auxiliary output of your CIOKS DC7 (or CIOKS 8) and converts that voltage into a single, super-powerful 9V or 12V output. The result? You can power your most power-hungry multi-effects unit while keeping 100% of your regular outputs free for your other pedals!
Engineering at the service of your sound
Puissance démesurée : Délivre jusqu'à 24 Watts de puissance pure, soit 2700mA sous 9V ou 2000mA sous 12V. C'est plus qu'il n'en faut pour les processeurs numériques les plus exigeants de l'industrie.
Économie d'espace et de sorties : En utilisant le port 24V "Link", le CRUX préserve vos 7 sorties isolées de la DC7 pour vos pédales d'overdrive, fuzz ou modulations standard.
Format furtif : Avec exactement le même profil ultra-plat d'un pouce (25,4 mm) que le reste de la gamme, il se dissimule sans effort sous les configurations les plus compactes.
🛠️ Technical Specifications
| Characteristic | Detail |
| Kind | Power conversion module (Requires a 24V power supply) |
| Entrance | 24V DC (Compatible with the Link output of CIOKS DC7/8) |
| Exit | 1 isolated output (Switchable voltage 9V or 12V) |
| Maximum Current | 2700mA (under 9V) or 2000mA (under 12V) |
| Profile | 25.4 mm (1 inch) - Compatible with Pedaltrain Nano/Metro |
| Weight | 135 g (0.3 lbs) |
| Cabling included | 1x Link Cable 24V, 1x Flex 1050 (Standard 2.1mm), 1x Flex 3050 (For HX Stomp) |
Comparative Table: How to power a large multi-effects unit?
| Feeding method | CIOKS CRUX (with DC7) | Current Doubler cables (with DC7) | Original (OEM) power supply |
| DC7 releases sacrificed | ZERO (Uses the 24V port) | 2 to 4 sacrificed outings | ZERO (but requires a second wall outlet) |
| Space on the Pedalboard | Excellent (1-inch profile) | Good | Bad (Bulky external block) |
| Noise management / Loops | Isolated & Silent | Isolated & Silent | Noise risk / Ground loop |
| Wiring | Clean and straightforward | Complex (Y-shaped cables) | Bulky |
Frequently Asked Questions (FAQ)
1. Can the CRUX reliably power the Neural DSP Quad Cortex?
Absolutely. In fact, that's one of the main reasons for its creation. Set the CRUX to 12V, use a suitable CIOKS Flex cable (the Quad Cortex usually uses a 2.1mm center negative connector, check your model's specifications), and you'll get 2000mA of ultra-clean power, which is perfect for QC.
2. Does this work for the Line 6 HX Stomp or HX Effects?
Yes! The HX Stomp requires 9V and uses a specific 2.5mm connector. The CRUX comes with the "Flex 3050" cable, designed precisely for this purpose. Set the CRUX to 9V, and you'll have up to 2700mA available, providing a huge safety margin for your Line 6 processor.
3. Can I use CRUX without owning a CIOKS DC7?
Technically yes, if you have another power supply capable of providing clean and powerful 24V DC. However, the CRUX has been specifically calibrated and designed to work in tandem with the 24V expansion port of the CIOKS DC7 or CIOKS 8.
4. If I connect the CRUX to my DC7, can I still add a CIOKS 8 Expander?
The DC7's 24V output can only connect one device directly. However, the CIOKS 8 has its own 24V Link Thru port. Therefore, you can daisy-chain: Wall outlet -> DC7 -> CIOKS 8 -> CIOKS CRUX. Just make sure that the total power consumption of all your pedals doesn't exceed the DC7's overall limit (48W).
5. Is it complicated to install under a Pedaltrain?
No, the CRUX uses the same mounting points as the rest of the CIOKS range. You can use the screws provided, or the optional CIOKS GRIP accessory for drill-free mounting.
