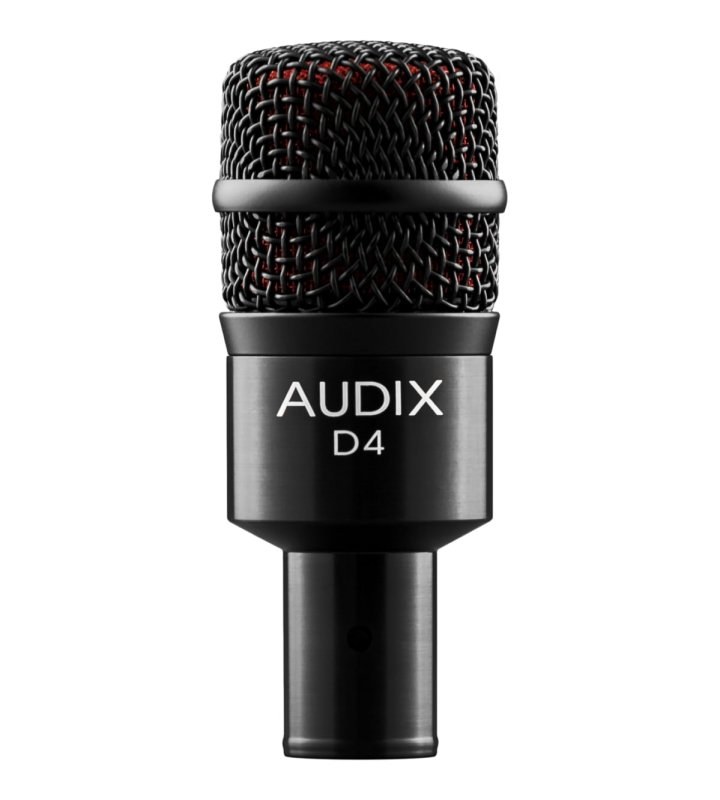

Audix D4 Hypercardioid Dynamic Instrument Mic for Floor Tom
The D4 is a hypercardioid dynamic mic for low-pitched instruments: floor tom, large rack tom, small kick drum or bass cab. It takes more than 144 dB SPL and delivers low end with precision, with no power to worry about.
What sets it apart
- Hypercardioid, little cymbal bleed
- Very low mass VLM diaphragm
- Handles over 144 dB SPL
- Compact: 100 mm and 128 g
The bottom of the kit
Audix aims the D4 at sources where the low end has to stay tight: large toms, floor tom, cajon, djembe, timpani, small kick. Its 40 Hz to 18 kHz response keeps the drum's fundamental, and its very tight hypercardioid pattern limits spill from the rest of the kit. It needs no phantom power and is not bothered by it.
Where to put it
On a tom, Audix suggests setting the bottom of the grille 1 to 2 inches above the head, pointing at the centre. Pull it back toward the rim for more ring, move it closer to the head for more attack. On a cab, place it 1 to 2 inches off the grille at 90 degrees: toward the cone's edge for a warmer tone, toward the centre for more highs.
Specifications
| Type | Dynamic, VLM Type D diaphragm |
|---|---|
| Polar pattern | Hypercardioid |
| Frequency response | 40 Hz to 18 kHz |
| Max SPL | 144 dB |
| Off-axis rejection | More than 20 dB |
| Sensitivity | 1.4 mV/Pa at 1 kHz |
| Length | 100 mm |
| Weight | 128 g |
| Included | DCLIP clip, pouch |
What it's for
- Floor tom and large rack tom
- Cajon, djembe, timpani
- Bass cab or Leslie bottom rotor
- Baritone sax and trombone
Compared with other manufacturers
Other dynamic mics for toms and low sources:
| Manufacturer | Model | Key trait |
|---|---|---|
| Audix | D4 | Hypercardioid, 144 dB SPL, 128 g |
| Shure | Beta 56A | Supercardioid, built-in stand adapter |
| Sennheiser | e 904 | Cardioid, integrated rim clip |
| Electro-Voice | ND44 | Tight cardioid, DRC-2 rim clamp |
Frequently asked questions
- D4 or D6 for kick drum?
- Audix intends the D6 for kick drum; the D4 is aimed more at large toms and floor tom, plus a small kick.
- D2 or D4 for toms?
- Audix puts the D2 on rack toms and the D4 on large toms and floor tom, where low end matters more.
- Is the D4 useful beyond drums?
- Yes: bass cab, Leslie bottom, baritone sax, trombone, clarinet or upright bass.
