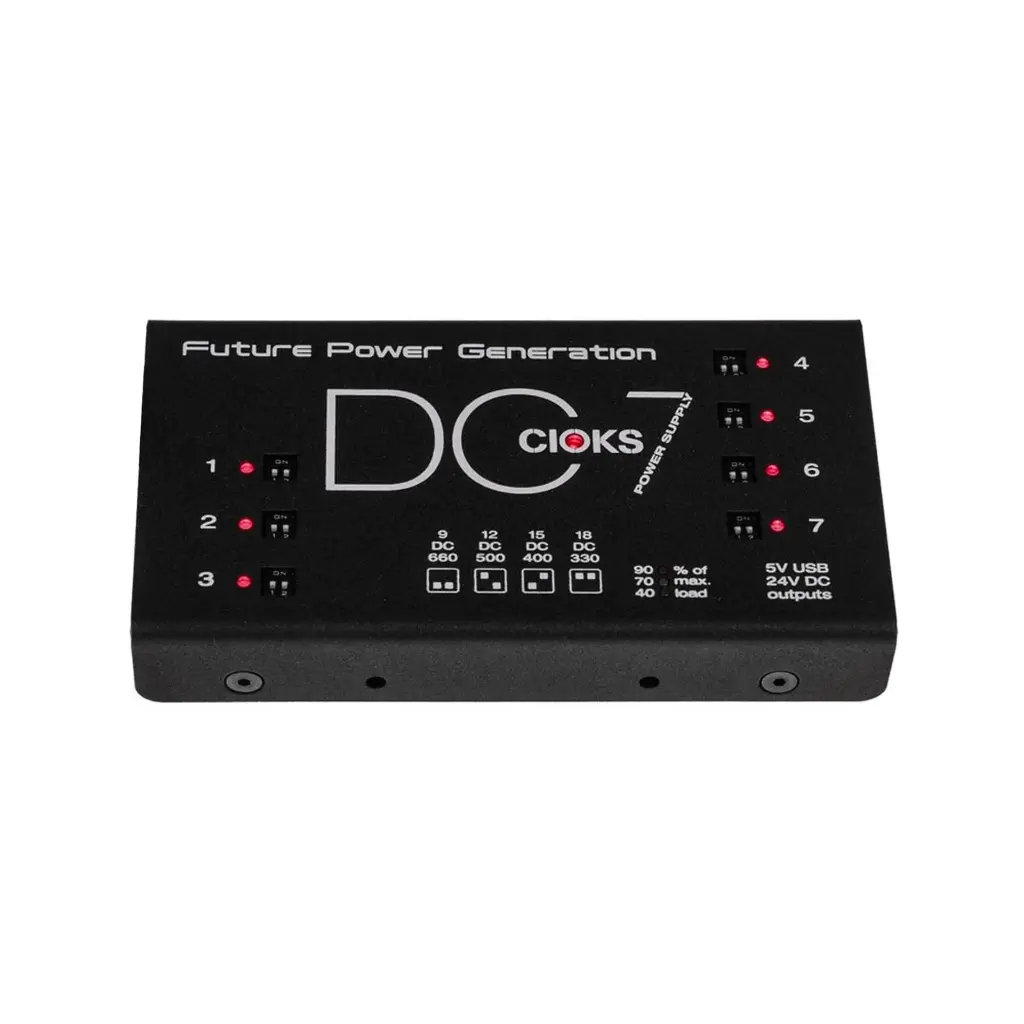

Cioks DC7 - Power Supply for Pedalboard - 7 Isolated Outputs
Discover the CIOKS DC7 power supply, a powerhouse with an ultra-slim profile offering seven isolated variable voltage outputs to pure power even the most demanding pedals on your pedalboard.
This content will be shared across all product pages.
Silence and power in their purest form
At Garage à Musique , we often say it: your sound system is only as good as its weakest link. And all too often, that link is the power supply. The CIOKS DC7 solves this problem once and for all. Part of the Future Power Generation series, it's currently the flattest, most versatile, and quietest power supply in its class.
With an incredibly slim profile of just 25.4 mm and a featherweight design, it literally slips under any pedalboard on the market, including the Pedaltrain Nano and Metro. But don't let its size fool you: each output delivers colossal power capable of driving even the most demanding digital pedals, while keeping your sensitive analog pedals in absolute silence thanks to perfect galvanic isolation.
Characteristics that dominate the industry
Profil ultra-fin : Seulement 1 pouce d'épaisseur pour un montage facile sous n'importe quelle planche.
Puissance dévastatrice : 7 sorties isolées offrant chacune 660mA sous 9V. Parfait pour vos Strymon, Eventide ou Neural DSP.
Tensions ajustables : Chaque sortie possède son propre sélecteur (9V, 12V, 15V ou 18V). Une flexibilité totale pour tous vos effets.
Prête pour le futur : Un port USB 5V pour recharger votre tablette ou téléphone sur scène, et une sortie 24V pour ajouter des blocs d'extension (CIOKS 4 ou 8) quand votre collection grandira.
🛠️ Technical Specifications
| Characteristic | Detail |
| Kind | isolated switching power supply |
| Isolated outings | 7 outputs (RCA connectors on the block side, flexible cables included) |
| Current per output | 660mA (9V), 500mA (12V), 400mA (15V), 330mA (18V) |
| USB output | 5V DC (Max 1A) - Ideal for accessories |
| Expansion release | 24V DC (Max 2A) - For CIOKS 4 or 8 |
| Input voltage | Universal (90-265V AC) - Play anywhere in the world |
| Profile | 25.4 mm (1 inch) |
| Weight | 500 g (1.1 lbs) |
| Accessories included | 12 Flex cables, basic mounting hardware |
Comparative Table: The Heavyweights of the Food Industry
| Characteristic | CIOKS DC7 | Strymon Zuma | Voodoo Lab Pedal Power 3 |
| Thickness | 25.4 mm (Extra flat) | 46 mm (Standard) | 46 mm (Standard) |
| Total Outputs | 7 isolated | 9 isolated | 8 isolated |
| Voltage options | All outputs (9/12/15/18V) | Only 2 outputs (9/12/18V) | Only 2 outputs (9/12V) |
| Maximum current (9V) | 660mA per output | 500mA per output | 500mA per output |
| Connector (Block) | RCA (Ultra robust) | Standard 2.1mm jack | Standard 2.1mm jack |
Frequently Asked Questions (FAQ)
1. Are the cables to connect the pedals included?
Yes, absolutely. The DC7 comes with an assortment of 12 "Flex" cables of different lengths and plug types, including a "Split" cable (to power two pedals with one output) and a cable to reverse the polarity.
2. Why does CIOKS use RCA jacks on the power supply?
This is the signature of CIOKS. The RCA connectors are inserted deeper and offer a much firmer grip than standard cylindrical plugs. This prevents accidental disconnections during a concert while also saving space inside the enclosure.
3. Can I power a Line 6 HX Stomp with the DC7?
Yes! The HX Stomp requires a lot of current. You will need to use an optional Current Doubler Flex adapter cable, available separately, which combines two outputs of the DC7 to provide ample amperage to your processor.
4. How do I attach the DC7 to a Pedaltrain?
CIOKS provides a template and screws for drilling into your Pedaltrain and permanently attaching the power supply. If you prefer not to drill, we highly recommend the CIOKS GRIP accessory (sold separately), which allows you to clip the DC7 under your Pedaltrain in seconds without any tools.
5. Is the power supply noisy?
It's quite the opposite. Thanks to its advanced multi-stage filtering and total galvanic isolation, the DC7 eliminates ground loops and background noise, even with highly sensitive overdrive pedals.
