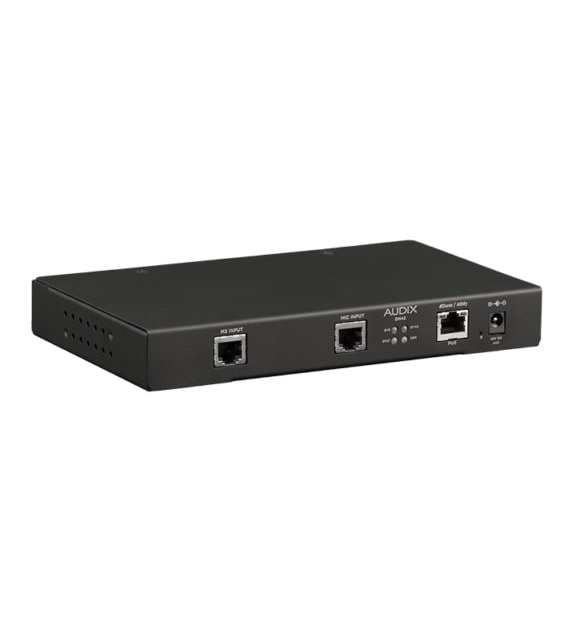

Audix DN43 Dante and AES67 Interface for M3 and One RJ45 Mic
The DN43 is the Dante and AES67 interface designed around the Audix M3 three-element ceiling mic: one port is reserved for it, and a second takes an Audix single-element mic. All four channels head onto the network over one cable.
What sets it apart
- Dedicated port for the M3 three-element mic
- Second port for a single-element RJ45 mic
- Four Dante or AES67 channels
- PoE or 48 V power
Built for the M3
The hanging M3 covers a room with three capsules, so three signals. The DN43 receives them on one RJ45 port and sends them as three channels on the network, ready for the video conferencing processor. The fourth channel comes from the second port, for an Audix single-element table or ceiling mic covering one more zone.
The same controls as the DN4
Each channel is set in software: gain in eight steps up to +36 dB, high-pass at 15 or 238 Hz, low-pass at 5, 7 or 10 kHz, or bypassed. Audio travels at 24 bits and 48 kHz, and settings are kept in flash memory. The interface supplies 48 V phantom power.
Installation
The DN43 runs on 802.3af PoE or an external 48 V DC source. Evaluated to UL2043, it can live above a drop ceiling, close to the mic. Mounting brackets are included. It handles the logic input and LED outputs of the single-element port.
Specifications
| Ports | One M3 port, one single-element port |
|---|---|
| Network channels | Four, Dante or AES67 |
| Audio format | 24-bit, 48 kHz |
| Gain setting | 0 to +36 dB, eight values |
| High-pass | 15 or 238 Hz |
| Low-pass | Off, 5, 7 or 10 kHz |
| Power | 802.3af PoE or 48 V DC |
| Certification | Evaluated to UL2043 |
What it's for
- Video conference rooms with an M3
- Hybrid classrooms
- Meeting rooms with an added zone
Compared with other manufacturers
Other interfaces for bringing mics onto Dante:
| Manufacturer | Model | Key trait |
|---|---|---|
| Audix | DN43 | Three-element M3 port and RJ45 port |
| Shure | ANI4IN | Four analog inputs, phantom |
| Shure | ANI22 | Two inputs, two outputs |
Frequently asked questions
- What is the difference between the DN4 and the DN43?
- The DN4 has four ports for single-element mics; the DN43 has one port for the three-element M3 and one for a single-element mic.
- Is the DN43 included with the M3?
- In the M3WDK (white M3) or M3GDK (grey M3) kit, yes; it is also available on its own.
- Can it be hidden in the ceiling?
- Yes: it is evaluated to UL2043 for installation above a drop ceiling.
