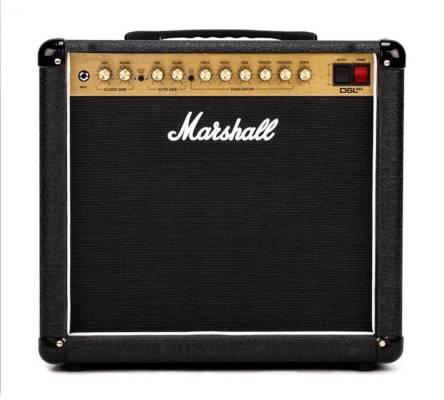

Marshall DSL20CR 20W 1x12" Two-Channel Tube Combo Amp
The Marshall DSL20CR is a 20-watt tube combo, switchable to 10 watts, with a 12" Celestion Seventy 80: two channels, Classic Gain and Ultra Gain, to go from a bright clean sound to biting overdrive at rehearsal.
What sets it apart
- Two EL34 output tubes
- 20W or 10W at the flick of a switch
- Classic Gain and Ultra Gain channels
- Presence and tone shift to shape the mids
- 12" Celestion Seventy 80
- Emulated output, series loop, footswitch included
Two characters in one amp
Each channel has its own gain and volume: Classic Gain for clean and crunch, Ultra Gain for distortion. Tone shift reshapes the midrange curve, and presence adds bite, as Marshall promises with its full-featured EQ.
Made for rehearsal
At 20 watts, the EL34s keep up with a band; at 10 watts, you keep the tube grit at a lower volume. Three speaker outputs take a 16 or 8-ohm load, and the balanced emulated output feeds a desk. The reverb is digital.
Specifications
| Power | 20W or 10W |
|---|---|
| Tubes | 2 x ECC83, 1 x ECC83 phase splitter, 2 x EL34 |
| Channels | Classic Gain and Ultra Gain |
| Controls | Gain and volume per channel, tone shift, treble, middle, bass, presence, reverb |
| Speaker | 12" Celestion Seventy 80 (16 ohms, 80W) |
| Speaker outputs | 3 jacks, 16 or 8-ohm load |
| Emulated output | 3.5 mm jack |
| Effects loop | Yes, series |
| Weight | 16.3 kg |
| Dimensions | 500 x 420 x 250 mm |
What it's for
- A first tube amp for playing with a band
- Rock, blues and metal
- Recording through the emulated output
- Rehearsal-room practice
Compared with other manufacturers
Other 15 to 20-watt tube combos from these manufacturers:
| Maker | Model | Power | Power tubes | Speaker |
|---|---|---|---|---|
| Marshall | DSL20CR | 20 or 10W | 2 x EL34 | Celestion Seventy 80, 12" |
| Blackstar | HT-20R MK III | 20W to 2W | 2 x EL84 | 12" Blackstar-designed |
| Vox | AC15C1 | 15W | EL84 | Greenback G12M, 12" |
| Orange | Rocker 15 | 15W to 0.5W | 2 x EL84 | Gold Label, 10" |
Frequently asked questions
- Why isn't the effects loop working?
- Marshall notes that the footswitch must be plugged in for the effects loop to work.
- Do the EL34s need biasing when replaced?
- No. The DSL20CR is cathode biased: new EL34s go in without a bias adjustment.
- Is the DSL20CR's emulated output balanced?
- Yes, Marshall describes it as balanced, which helps on long cable runs to a desk.
