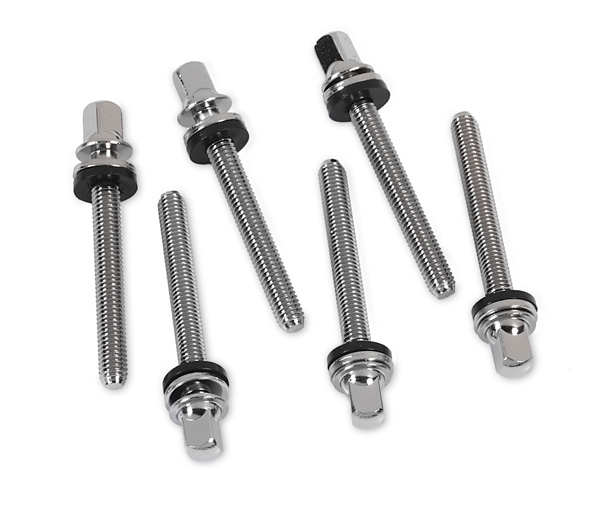

DW DWSM165C True-Pitch Chrome 1.65 in Tension Rods, 6-Pack
Tuning a tom to within half a turn of the key assumes the rod responds to half a turn. True-Pitch drum tension rods carry thirty threads per inch where an ordinary rod has twenty-four: for the same rotation, tension rises more slowly, and the sweet spot becomes reachable.
What sets it apart
- True-Pitch threading at thirty threads per inch (TP30)
- Thirty threads where an ordinary 12-24 rod has twenty-four
- Each turn of the key therefore moves the hoop one fifth less
- 1.65 in (41.9 mm) long, for toms and shallow snare drums
- Pack of six, enough for one side of a six-lug tom
- Chrome on steel
What tighter threads do to your tuning
Head tension is not set by force, it is set by travel: each turn of the key drives the rod in by a distance equal to the thread pitch. Thirty threads per inch instead of twenty-four means one fifth less travel per turn — the same wrist motion produces a smaller change in tension.
Written out like that, the difference looks trivial. To the ear, it is the difference between a drum you zero in on and a drum you overshoot on every try. The finer the pitch, the wider the sweet spot under the key.
Length is not an interchangeable detail
1.65 in is the right length for toms and shallow snare drums. Too short, the rod does not have enough grip in the lug insert and strips the thread; too long, it bottoms out in the lug before the head is up to tension and stops you from tuning any higher.
That is why the same family of rods comes in several lengths: the thread serves the tuning, the length serves the drum.
Six at a time, and why you do not replace them one by one
A head is tensioned from opposing points. If five rods have one pitch and the sixth another, tension rises differently at that point and the drum refuses to hold its tuning, with no visible cause.
Replacing a full set on one side avoids that trap. The pack of six matches exactly one side of a six-lug tom.
Specifications
| Thread | M5-.8, True-Pitch 30 (thirty threads per inch) |
|---|---|
| Length | 1.65 in (41.9 mm) |
| Quantity | Pack of 6 |
| Finish | Chrome on steel |
| Drums | Toms and shallow snare drums |
What it is for
- Converting a tom to fine threading for more precise tuning
- Replacing bent or seized tension rods
- Studio tuning where you are after a precise pitch
- Matching all the rods on one full side
- Replacing rods corroded by sweat
Compare with other manufacturers
Tension rods from other drum makers:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Pearl | Standard tension rods | Standard thread with a coarser pitch, original fitment |
| Tama | Star tension rods | Different head profile, captive washer on some models |
| Ludwig | Classic tension rods | Traditional imperial thread, vintage look |
| Gibraltar | Universal tension rods | Sold as multi-brand replacements, common threads only |
Frequently asked questions
- Will these rods fit my current lugs?
- Only if the lug inserts have the same thread. A fine thread in a 12-24 insert does not bite properly and eventually gets damaged: check the insert before you order.
- Can I mix these with standard tension rods on the same drum?
- It is not recommended. Different pitches do not move the hoop at the same rate, and the tuning becomes impossible to even out.
- Does the finer thread make tuning slower?
- A little, when bringing a new head up from zero. On the other hand, fine tuning — the part that takes the most time in practice — becomes noticeably faster.
- Should I lubricate the threads?
- A trace of grease or wax on the thread and under the head of the rod reduces seizing and makes the torque more even from one rod to the next.
