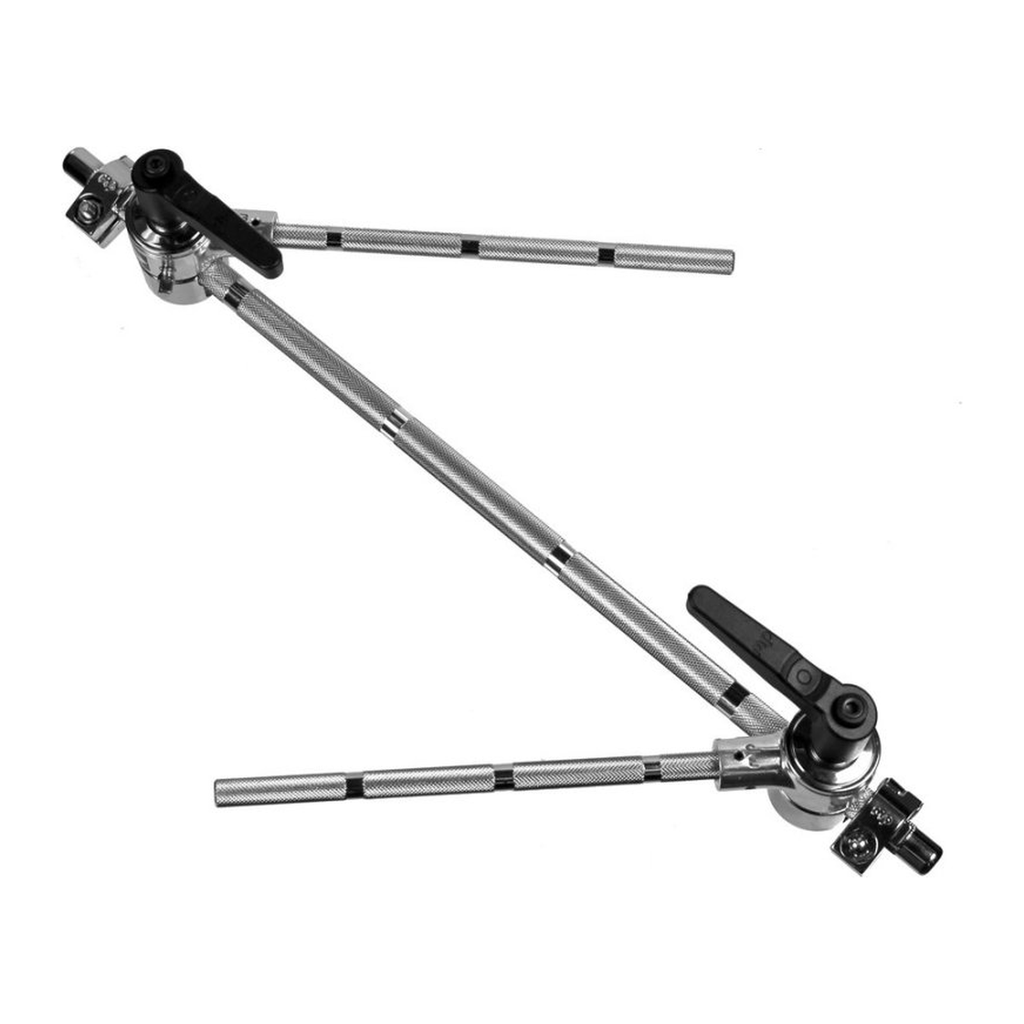

DW DWSM2071 17 in Multi-Percussion Arm for 9600 and 9700 Stands
The DWSM2071 is a 17 in knurled multi-percussion arm, 1/2 in in diameter, designed for 9600 and 9700 stands. It carries two gearless tilter rods and two memory locks: enough to hang several small percussion instruments from a single support point.
What sets it apart
- 17 in bar, knurled surface to prevent rotation
- 1/2 in diameter along its entire length
- Two DWSM2035 gearless Techlock tilter rods included
- Two memory locks included
- Designed for the brand's 9600 and 9700 stands
One bar, several sounds
A percussionist's problem is not hanging one tambourine: it is hanging four, within reach, without setting up four stands. A horizontal bar handles that better than a growing collection of holders, because it offers a continuous line where every item finds its place.
The 17 in available leave real space between two accessories. On a shorter bar, the pieces touch and ring against each other as soon as you hit one.
Knurling and memory locks, two details that stop drift
A smooth bar rotates under load: the accessories tip forward during the show. The knurled surface gives the clamp jaws something to bite on and stops that slow rotation.
The two memory locks included do the same job on the other axis: they keep the clamps from sliding sideways and let you find the exact spacing again from one setup to the next.
Why it is meant for specific stands
The manufacturer names two stands, and only two: the 9600 and the 9700. This is not catalogue caution. Hanging 17 in of loaded arm on an ordinary cymbal stand moves the centre of gravity forward, and that is how a setup ends up on the floor.
Specifications
| Usable length | 17 in |
|---|---|
| Diameter | 1/2 in |
| Accessories included | Two DWSM2035 Techlock tilter rods and two memory locks |
| Intended stands | 9600 and 9700 |
What it is for
- Mounting hand percussion around the kit
- A row of cowbells or blocks for a show
- A percussion section in an orchestra pit
- Studios where several small sounds need to stay within reach
- Hybrid kits mixing acoustic drums and triggers
Compare with other manufacturers
Multi-percussion bars and rails from other manufacturers:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Gibraltar | Accessory bar from its rack line | Designed for a complete tubular rack |
| Pearl | Stand-mounted percussion bar | Diameter and clamps specific to the brand |
| Tama | Accessory bar from its heavy-duty hardware | Sold without rods or memory locks |
| Mapex | Percussion rail | Mounts with a multi-purpose clamp rather than on a dedicated stand |
Frequently asked questions
- Will it work on a regular cymbal stand?
- The manufacturer intends it for 9600 and 9700 stands. On a lighter stand, the overhang of a loaded bar becomes a real tipping risk.
- How many accessories can I hang on it?
- Two tilter rods are included. Nothing stops you from adding clamps, as long as you spread the weight and do not load everything on one end.
- What are the memory locks for here?
- They lock the clamps in place and keep them from sliding toward the centre. They also let you reproduce the same spacing from one setup to the next.
- Does the knurling damage the clamps?
- No. It gives the clamp something to grip; the jaws bite into it instead of slipping on polished chrome.
