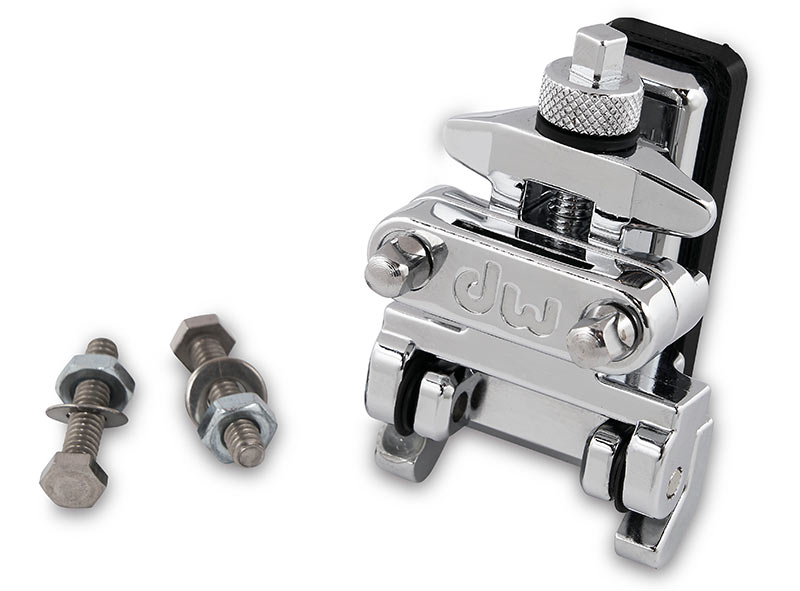

DW DWSM2157UM Universal Mini MAG Snare Throw-Off, Chrome
The universal Mini Mag exists for a simple reason: most snare drums in the world are not DWs, and their holes never land in the same place. Its hole spacing adjusts from 19 to 38 mm, which lets it mount on practically any shell from 4.5 to 8 in deep.
What sets it apart
- Hole spacing adjustable from 0.750 in (19 mm) to 1.5 in (38 mm)
- Compatible with shells from 4.5 to 8 in deep, sometimes more
- Mini format, more discreet than a full-size body
- Same magnetic hold principle as the full-size throw-off
- Designed as an upgrade to fit on an existing shell
- Chrome finish
Hole spacing, the number nobody checks before buying
A throw-off mounts with two screws. The distance between those two screws — the hole spacing — varies from one manufacturer to another, and sometimes from one line to another at the same manufacturer. It is the number one reason a mechanism upgrade fails: the part is fine, the holes do not line up.
By making that distance adjustable over a range of 19 to 38 mm, the universal Mini Mag covers the vast majority of existing drillings. In many cases, it therefore mounts on the holes that are already there.
Why the Mini version rather than the full size
A tall throw-off body needs shell height to sit straight. On a shallow snare drum, it sticks out, touches the hoop, or forces you to drill too close to the edge.
The Mini format solves that geometry problem. It opens the upgrade to shallow shells — piccolos, 4.5 and 5 in snares — that were left out, without changing how it works.
What to know before you order
Universal does not mean guaranteed on everything. The manufacturer is clear about it: the part will not fit every snare drum on the market perfectly. Some shells have protruding lugs, internal reinforcement rings or a snare bed that get in the way.
Checking takes two minutes: measure the spacing of the existing holes and the shell depth, and look at what sits behind the mounting area, on the inside.
Specifications
| Type | Universal mini drop-style snare throw-off |
|---|---|
| Adjustable hole spacing | 0.750 in (19 mm) to 1.5 in (38 mm) |
| Shell depth | 4.5 in to 8 in, sometimes beyond |
| Hold | Magnet |
| Finish | Chrome |
What it is for
- Upgrading a snare drum from another brand
- Shallow snare drum where a tall body will not fit
- Replacing a mechanism whose original part is no longer available
- Fitting a custom or DIY snare build
- Standardizing the mechanism across several different snare drums
Compare with other manufacturers
Snare mechanisms designed for a universal fit from other manufacturers:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Trick | Multi-Step universal | Several stepped tension positions, fixed hole spacing |
| Gibraltar | Replacement snare strainer | Designed as a budget replacement, without a magnetic hold |
| Pearl | SR-017 strainer | Compact body with a short lever, brand-specific hole spacing |
| Dunnett | R4 | High-end machined part, designed for mounting on a custom shell |
Frequently asked questions
- How do I know if it will fit my snare drum?
- Two measurements are enough: the distance between your two current mounting holes, which must fall between 19 and 38 mm, and the shell depth, which must be between 4.5 and 8 in.
- Do I need to drill new holes?
- Not necessarily. When the existing spacing falls within the adjustable range, the part uses the original holes. If not, drilling is required.
- Will it fit a snare drum deeper than 8 in?
- The manufacturer says it is possible in some cases, without guaranteeing it. Beyond the stated range, check it on the drum in question.
- What is the difference from the full-size model?
- The size and the mounting range. The full-size model replaces a mechanism on the brand's own shells; this one is made to fit elsewhere and on shallower shells.
