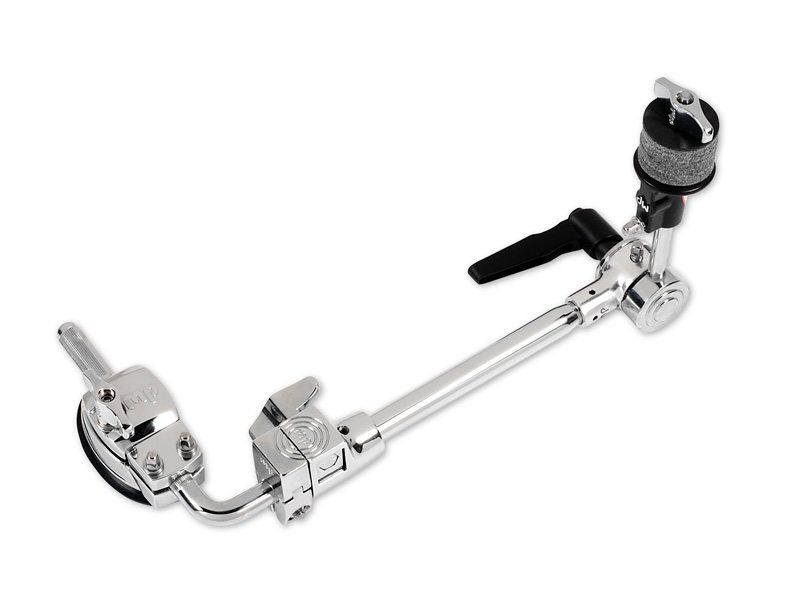

DW DWSM770S 9 in Short Bass Drum Mounted Cymbal Arm with TB12 Bracket
The DWSM770S is a 9 in cymbal arm that mounts on the bass drum itself, using the TB12 bracket supplied with it. Nine inches is short: the cymbal stays close to the drum and close to the drummer instead of hanging out at the end of a long reach.
What sets it apart
- 9 in arm, cymbal brought in close to your body
- TB12 bracket and mounting hardware supplied
- Gearless tilter with Techlock
- Adjustable cymbal seat
- Less overhang than a loaded long arm
Bringing it closer instead of pushing it away
A long arm pushes the cymbal away, which is sometimes exactly what you do not want. On a tight kit, or when the cymbal has to fall under the left hand without moving the shoulder, nine inches put the metal right where your stroke already goes.
It is also the right length when several arms cross over the bass drum: each one stays in its own lane instead of getting in its neighbour's way.
Overhang, the mechanical case for the short arm
A cymbal exerts torque in proportion to its distance from the anchor point. Cutting that distance from fourteen to nine inches cuts the load passed to the bracket and the shell by the same proportion.
The mount vibrates less, the setting drifts less, and the bass drum takes less strain. On a drum you want to look after, that is not a theoretical argument.
Specifications
| Arm length | 9 in |
|---|---|
| Supplied with | TB12 bracket and complete hardware |
| Angle adjustment | Gearless, Techlock |
| Seat | Adjustable |
What it is for
- Auxiliary cymbal placed near the snare
- Compact kits where arms risk crossing
- Heavy cymbal you want to keep close to the anchor point
- Narrow stage setups
- Low-footprint recording setups
Compare with other manufacturers
Short drum-mounted arms from other manufacturers:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Pearl | Short arm from its drum hardware | Mounts on the existing tom holder block |
| Tama | Short auxiliary arm | Geared angles rather than free adjustment |
| Mapex | Cymbal arm on a drum mount | Drum bracket not supplied |
| Gibraltar | Short plate-mount arm | Mounts with a screwed-on plate |
Frequently asked questions
- Can I switch from the short arm to the long arm later?
- The TB12 bracket is the same on both models. It is the arm that changes, not the mount on the drum.
- Is nine inches enough to clear the cymbal from the tom?
- It depends on the size of the tom mounted above. Measure the available clearance before choosing between the two lengths.
- Will the seat take a thick cymbal?
- Yes, the seat adjusts in height to suit the thickness of the centre hole and the felts used.
