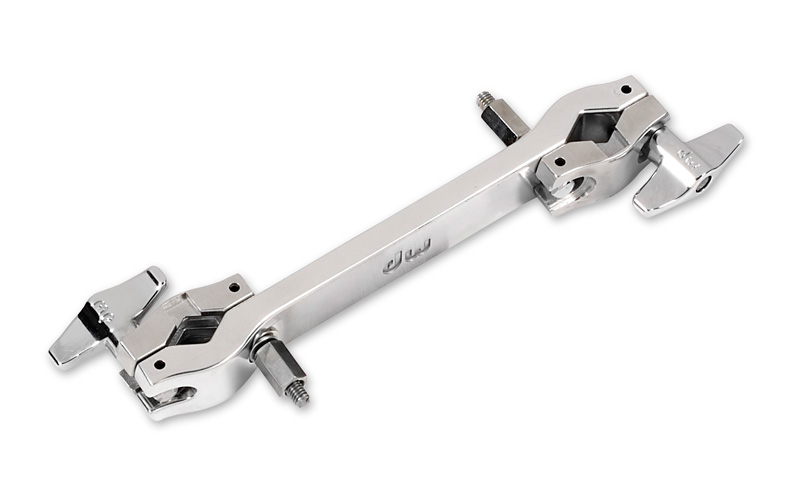

DW DWSM773 9 in Hinged V-to-V Multi Clamp for Tubes
The DWSM773 is a drum multi clamp that links two tubes nothing else was joining. Its two V-shaped jaws accept diameters from 5/8 in to 1 1/4 in, and its nine-inch body gives the distance needed to get around whatever sits between them.
What sets it apart
- Two V-shaped jaws, one at each end
- Accepts diameters from 5/8 in to 1 1/4 in
- 9 in body, real reach between two points
- Hinged opening: goes on without removing the tube
- Easy adjustment of both clamps
The V-shaped jaw, and why it covers such a range
A flat jaw only touches a round tube at one point: it slips, and you have to clamp hard to make up for it. A V-shaped jaw touches it at two points, on either side of the groove, whatever its diameter within the intended range.
That is what lets this clamp go from 5/8 in to 1 1/4 in without shims or bushings. A thin tube sits at the bottom of the V, a thick tube rests higher on the sides, and both are held the same way.
Nine inches, to get over what is in the way
A short clamp assumes the two tubes are almost side by side. In a real setup, there is a drum, an arm or a cable between them. The length is there to span that obstacle.
It also lets you offset a bulky load — a percussion table, a large-diameter cymbal — far enough that it does not touch anything when it vibrates.
Specifications
| Length | 9 in |
|---|---|
| Jaws | Two V clamps |
| Accepted diameters | 5/8 in to 1 1/4 in |
| Opening | Hinged |
| Finish | Chrome |
What it is for
- Linking two stands to stiffen a setup
- Offsetting a percussion table
- Mounting a large cymbal on an existing structure
- Joining tubes of different diameters
- Custom setups in the pit or in the studio
Compare with other manufacturers
Double-jaw clamps from other manufacturers, and their diameter range:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Gibraltar | Two-jaw multi clamp | Shorter body, less reach |
| Pearl | Two-point rack clamp | Designed for its own rack diameters |
| Tama | Double accessory clamp | Narrower diameter range |
| Mapex | Rack connecting clamp | No hinge, must be slid on from the end of the tube |
Frequently asked questions
- Can I connect two tubes of different diameters?
- Yes, that is exactly the point of the V-shaped jaws: each one adjusts independently within the stated range.
- Do I have to remove the tube to install the clamp?
- No. The hinge lets you open the jaw and close it around the tube in place.
- Will a 1 1/2 in tube fit?
- No. The range stops at 1 1/4 in. Beyond that, the jaw no longer closes and the clamp will not hold.
- Will it mark the chrome on the tube?
- Normal tightening does not leave marks. It is repeated over-tightening that eventually leaves an imprint.
