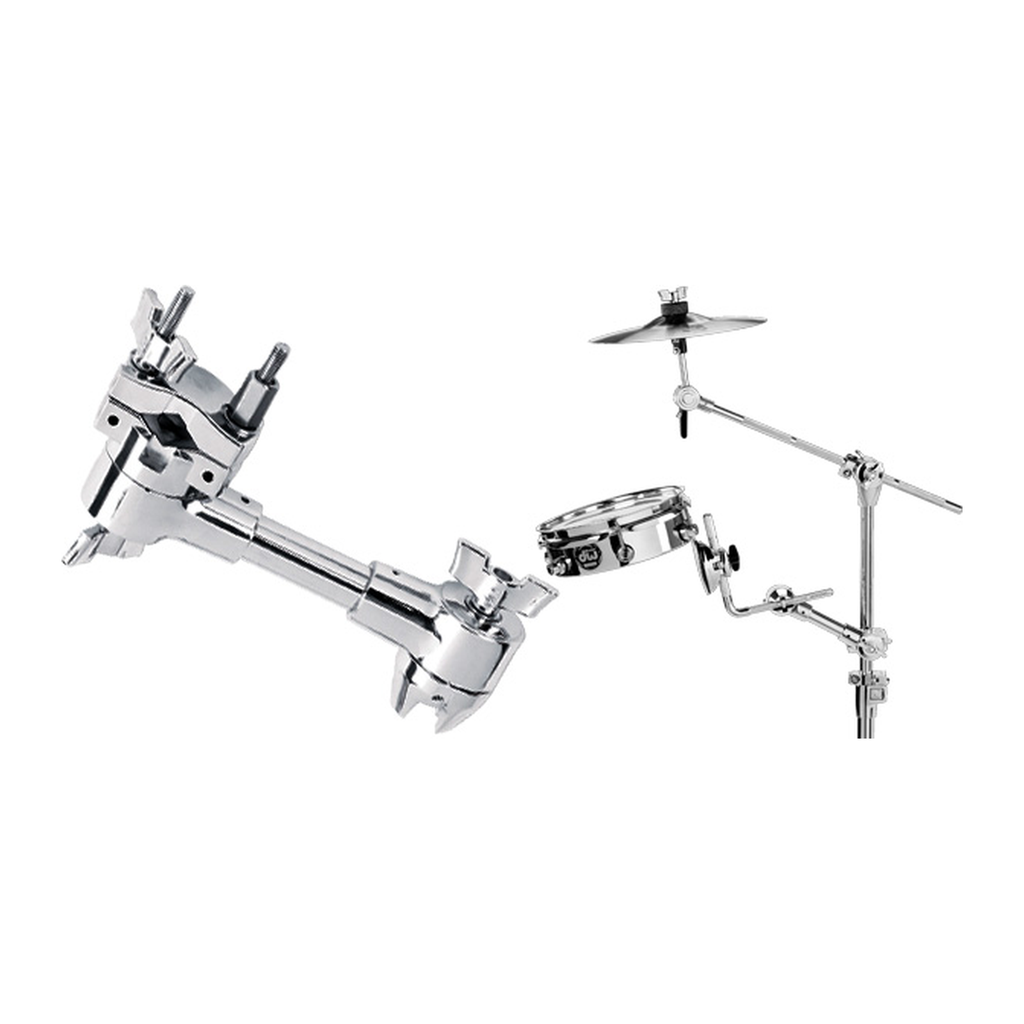

DW DWSM774 Ratchet Dogbone with Adjustable V Clamp and Eye Bolt
The DWSM774 is a dogbone multi clamp that joins a tube and a rod: a V-shaped jaw that grips a tube on one side, an eye bolt that takes a sliding rod on the other. Each end adjusts independently on its own ratchet.
What sets it apart
- Adjustable V clamp on one side
- Adjustable eye bolt on the other
- Ratchet adjustment at both ends
- SMMGM memory lock supplied
- Adds onto an existing arm, rod or tube
Two ways to hold, on the same piece
A tube is clamped from the outside: that is the job of the V. A rod goes through: that is the job of the eye, where it slides before being locked. Those are two different jobs, and most setups need both.
Combining both on one piece saves you from stacking two clamps back to back, which adds play and always ends up twisting out of position.
Adjustment at both ends, one setting at a time
The two ends adjust separately. In practice, you first set the jaw on the supporting tube, at the height you want, then turn the eye to line the rod up at the angle you need — without having to loosen the first setting.
That is what separates a usable assembly part from one that makes you start over as soon as a detail changes.
The memory lock, included for a reason
A rod passing through an eye can slip. The supplied memory lock clamps onto that rod and acts as a stop: the insertion depth is remembered, and setting up again gives you exactly the same position.
Specifications
| Type | Heavy-duty ratchet dogbone |
|---|---|
| End 1 | V clamp with adjustable angle |
| End 2 | Eye bolt with adjustable angle |
| Included | One SMMGM memory lock |
What it is for
- Adding a boom to a stand already in place
- Linking a rack tube and an accessory rod
- Offsetting a tom or a cymbal on an existing setup
- Temporary setup for a one-off gig
- Completing a rack that is missing a mounting point
Compare with other manufacturers
Mixed connecting clamps, tube on one side and rod on the other, from other manufacturers:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Gibraltar | Eye and jaw clamp | Ends often locked together in rotation |
| Pearl | Rack clamp with rod receiver | Designed for its own rack system |
| Tama | Accessory clamp with rod holder | Memory lock sold separately |
| Dixon | Eyelet connecting clamp | Longer body, less precise adjustment |
Frequently asked questions
- How is it different from the V-to-V version?
- This one takes a rod in an eye instead of clamping a second tube. The choice depends on what you need to attach.
- What rod diameter fits in the eye?
- The brand's 1/2 in rods and booms are right at home in it. Check the diameter of yours before ordering.
- Is the memory lock really included?
- Yes, one SMMGM memory lock comes with the clamp; it is what sets the rod's insertion depth.
- How far apart are the two ends?
- The manufacturer does not state an overall measurement for this model. If the distance is critical in your setup, it is better to measure it on the part than to rely on an unconfirmed figure.
