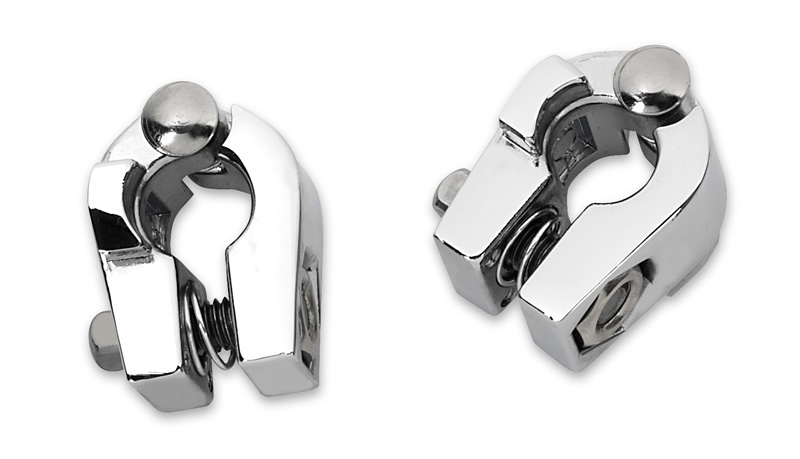

DW DWSM783 Hinged Memory Locks, 10.5 mm, Pair
The SM783 is the 10.5 mm version of the brand's hinged memory locks. That diameter is the one used for the arms and thin rods of a setup: it is where a setting is lost most easily, because nothing stops it from slipping.
What sets it apart
- 10.5 mm diameter, for arms and thin rods
- Hinged opening: installs without removing the arm
- Sold as a pair
- Lock rotation as well as insertion depth
- Listed as an add-on for any stand arm
Diameter decides, not brand
Memory locks are chosen by the millimetre, not by brand. A 10.5 mm arm will not take a lock made for 1 in tubing, and the reverse is even more true: if it is too wide, the lock just spins and does nothing.
This size is aimed at the arms that carry cymbals, support rods and small accessory tubes. Measure before ordering, with calipers if you have them — two tenths of a millimetre is enough to make a lock useless.
Locking the depth, and the orientation too
On a cymbal arm, height is not the only setting that gets lost. Orientation matters just as much: a cymbal that comes back turned fifteen degrees no longer plays from the same spot on the throne.
A lock set against the clamp holds both at once. The arm slides in to the stop and ends up on the same axis, which makes the setup repeatable without eyeballing it.
Specifications
| Tube diameter | 10.5 mm |
|---|---|
| Packaging | Pair |
| Opening | Hinged |
| Stated use | Adds on to any stand arm |
What it is for
- 10.5 mm cymbal arms and rods
- Locking an arm's orientation, not just its height
- Mounting percussion accessories on a thin rod
- Installing on an arm already in place, without removing anything
- Replacing a lost lock on a cymbal stand
Compare with other manufacturers
The same size exists from other hardware manufacturers, each with its own tolerances:
| Manufacturer | Comparable part | What differs |
|---|---|---|
| Pearl | Cymbal arm memory locks | Diameters matched to Pearl arms |
| Tama | Roadpro arm memory locks | Often built into the original arm |
| Gibraltar | Small-diameter universal locks | Sized by the millimetre, opening not always hinged |
| Sonor | 600 Series stand locks | Dimensions specific to Sonor hardware |
Frequently asked questions
- How is it different from the 1 in version?
- Diameter only. This one is for 10.5 mm arms and rods; the other is for 1 in tubing. They are not interchangeable.
- How do I measure my arm?
- With calipers, on a smooth, unthreaded section. A difference of a few tenths of a millimetre is enough to make the part useless.
- How many are in the box?
- Two, sold as a pair.
- Do they stop the arm from rotating?
- Set against the clamp, they stop the arm at the same depth and on the same axis. That is what makes the setup repeatable.
