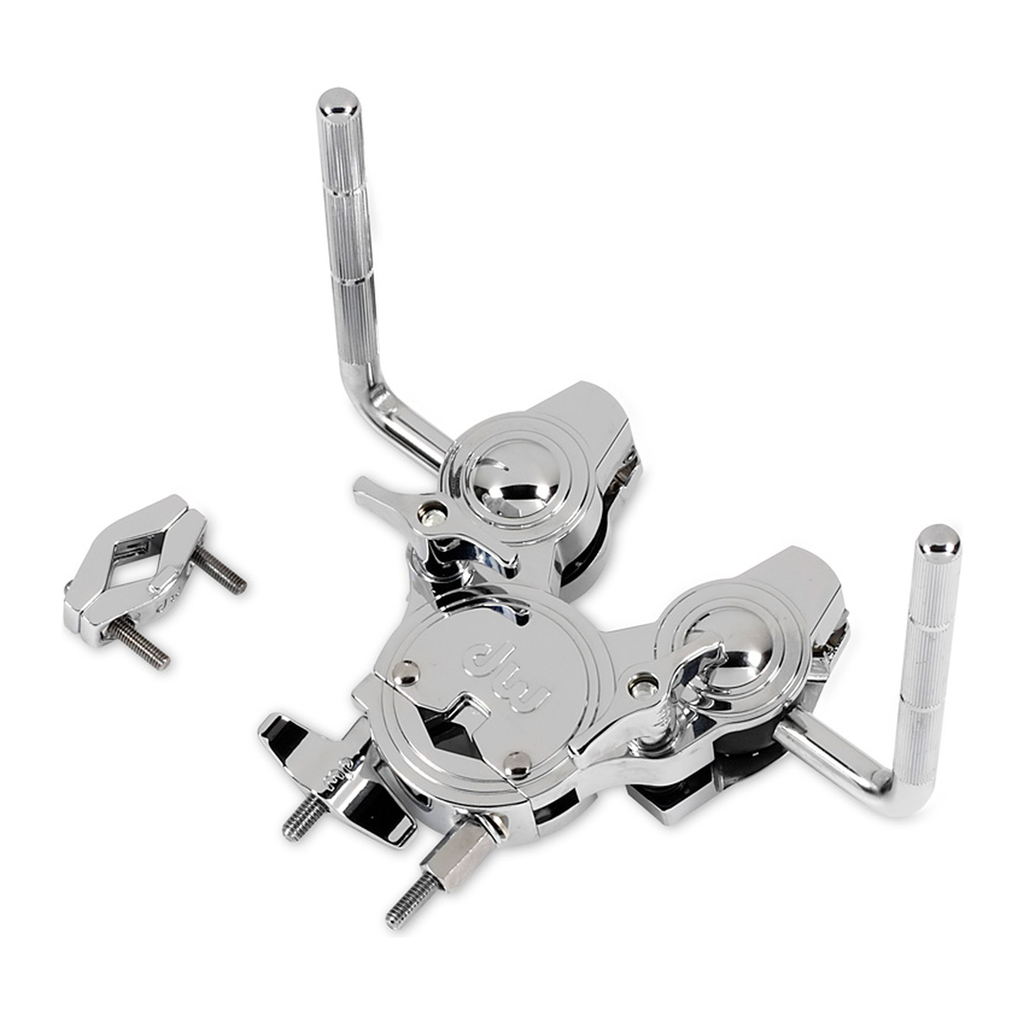

DW SM992 Double Tom Clamp with Memory Locks
The SM992 double tom clamp holds two toms on a single anchor point. It has the same quick-release V-clamp as the single version, but two sockets, two L-arms and two V memory locks: it is the part that gives you two rack toms on a kit whose bass drum has no tom mount.
What sets it apart
- Two independent L-arms on a single clamp
- Each socket takes a 12.7 mm knurled ball
- Quick clamping on anything from 1/2 in to 1.25 in
- Two V memory locks included
- Lets you run two toms without drilling a shell
- A single anchor point to adjust for two drums
A pair of toms without touching the bass drum
Drilling a bass drum to fit a holder is a permanent decision, and many drummers would rather avoid it — on a vintage drum, on a valuable drum, or simply because the setup changes from one gig to the next.
This clamp moves the problem elsewhere: both toms hang from a column or a tube, and the bass drum stays untouched. You get the classic two-rack-tom position back without drilling anything.
Two drums on one anchor point: the geometry to watch
Two toms side by side are two loads offset from the axis of the support. The resulting torque is not that of a single drum placed at the centre: it twists the column instead of simply pushing on it.
Hence two rules of thumb. First, the support must be a sturdy tube, not the thinnest rod in the setup. Second, adjust both arms with the load distribution in mind: bringing the drums closer to the axis reduces twisting far more effectively than tightening harder.
Two memory locks, and what they save you at setup
Finding a tom's position again is already work; finding it for two linked drums, where one decides access to the other, is another matter. The two memory locks supplied each mark their own position.
The next setup is then done against the stops, without measuring or trial and error: the toms come back to the same place relative to each other, which is the only thing your hands have memorized.
Specifications
| Drums held | Two |
|---|---|
| Clamping | Quick-release V-clamp, 1/2 in to 1.25 in |
| Sockets | Two, for 12.7 mm knurled balls |
| Arms | Two 1/2 in L-arms |
| Locks supplied | Two V memory locks |
What it is for
- Rebuilding a pair of toms without drilling the bass drum
- Mounting two drums on a rack bar
- Hanging two toms from a solid column
- Switching from a drilled setup to a suspended one
- Transporting a pair of toms that is already adjusted
Compare with other manufacturers
Double holders exist elsewhere, with different philosophies about the anchor point:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Pearl | Stand-mounted double tom holders | Long-rod arms, brand-specific adjustment |
| Tama | Clamp-on double holders | Block and arms often form a single unit |
| Gibraltar | Double rack mounts | Designed first for rack tubes, not for stand columns |
| Mapex | Add-on double holders | Arm diameters vary by line |
Frequently asked questions
- Is it reasonable to put two toms on one stand?
- On a solid tube and a heavy stand, yes. On a light cymbal stand, the load becomes hard to balance: a rack tube or a column designed to carry weight is a better choice.
- Can the two arms be adjusted separately?
- Yes. Each arm has its own socket and ball, so its own angle and height.
- What size drums will it take?
- Those whose mount accepts a 1/2 in rod. The limiting factor is less the tom's size than its weight and the strength of the anchor point.
- Can I use just one arm?
- Nothing prevents it. The second socket remains available for an effects piece or an accessory, which saves adding another clamp.
