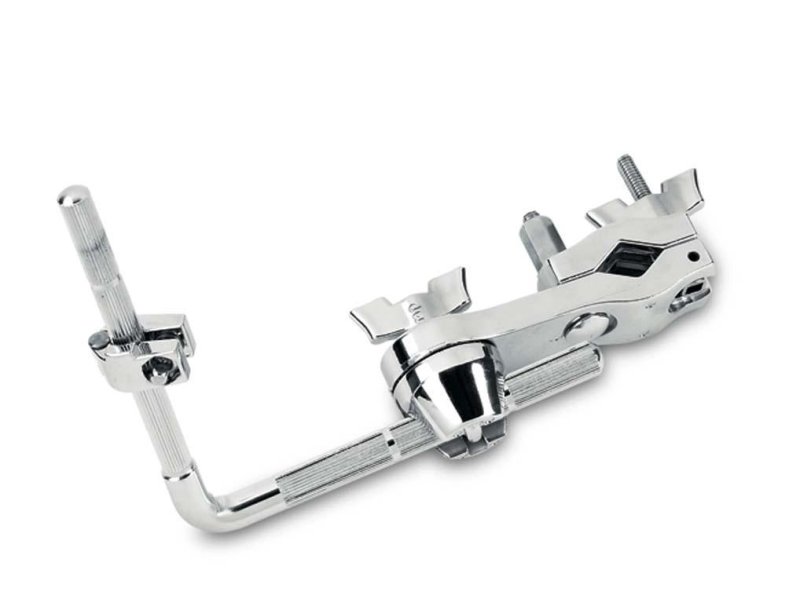

DW SMMG-5 Mega Clamp, V-Clamp to Eyebolt with L-Arm
The SMMG-5 is a complete accessory mounting kit: a standard quick-release V-clamp, an angle-adjustable eyebolt clamp, and in the box the 1/2 in to 10.5 mm L-arm, its 1/2 in memory lock and a V memory lock. There is nothing else to buy.
What sets it apart
- Standard quick-release V-clamp
- Angle-adjustable eyebolt clamp
- 1/2 in to 10.5 mm L-arm supplied
- One 1/2 in hinged memory lock and one V memory lock included
- Accepts 1/2 in to 1.25 in on the clamping side
- Ready to mount a cowbell, a block or a small percussion piece
The problem with parts bought separately
Mounting an accessory actually takes four things: a clamp on the support, a pivot point, an arm of the right diameter, and a memory lock to hold the position. Bought piece by piece, that is four part numbers to match, and a single diameter mistake makes the whole thing unusable.
Here, all four arrive matched. That is the main argument for this version: not that it does more, but that it keeps you from getting it wrong.
Why 10.5 mm at the end of the arm
The arm has two diameters: 1/2 in on the side that goes into the clamp, 10.5 mm on the side that takes the accessory. That step down is not decorative — many cowbell, block and small percussion holders are drilled for a thinner rod.
Without it, you end up with an arm too thick for the accessory and resort to improvising a shim. With it, the accessory slides on and locks as intended.
Two different kinds of memory lock
The 1/2 in hinged memory lock goes on the arm: it keeps the accessory from sliding down and sets the depth of engagement. The V memory lock works on the clamp and keeps its place on the support.
These are two memories used at different moments of the setup. That is why the kit contains one of each instead of two identical ones.
Specifications
| Fixed side | Standard V-clamp, quick release |
|---|---|
| Swivelling side | Eyebolt clamp |
| V-clamp | accepts 1/2 in to 1.25 in |
| Arm supplied | L-arm, 1/2 in to 10.5 mm |
| Locks supplied | One 1/2 in hinged, one V |
What it is for
- Mounting a cowbell within stick reach
- Mounting a wood block or an accessory drilled for 10.5 mm
- Adding a small percussion piece to an existing stand
- Equipping a setup without hunting for parts one by one
- Replacing a makeshift assembly with a matched kit
Compare with other manufacturers
Complete kits of this kind from other manufacturers are often put together differently:
| Manufacturer | Their equivalent | Where they differ |
|---|---|---|
| Gibraltar | Percussion mounting kits | Arm and clamp matched differently depending on the line |
| Pearl | Stand-mounted accessory holders | Receiving diameters specific to the brand |
| Tama | Accessory attachments with arm | Memory lock sometimes sold separately |
| Mapex | Hardware accessory clamps | Range centred on rods of a single diameter |
Frequently asked questions
- Do I need to buy an arm as well?
- No. The 1/2 in to 10.5 mm L-arm is part of the kit, along with its two memory locks.
- What if my accessory is drilled for 9.5 mm?
- Then you need an arm whose small end measures 9.5 mm. The clamp and memory locks remain usable; only the arm changes.
- Will the eyebolt take a cymbal arm?
- Yes, as long as the rod matches the eye's diameter. The part is not limited to percussion accessories.
- How is it different from the version without the arm?
- The version without the arm supplies the clamp alone. This one adds the arm and the two memory locks: the same clamping principle, delivered ready to use.
