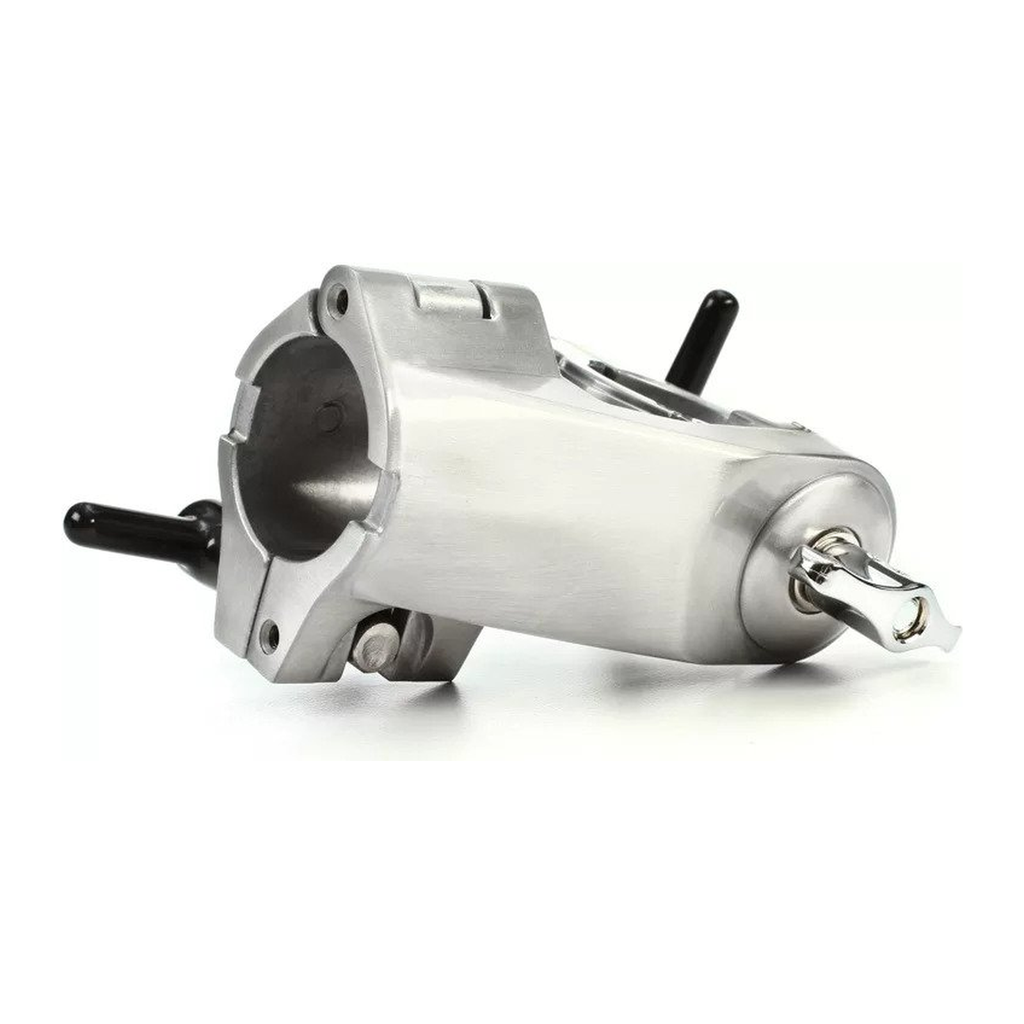

DW SMRKC15S Adjustable Drum Rack Clamp, 1.5 in to 1.5 in
The SMRKC15S joins two 1.5 in drum rack tubes at the angle you choose. Its fine-tooth tilter can be readjusted once the assembly is locked. It is the part for racks that are not rectangular, and there are more of those than you might think.
What sets it apart
- Joins two 1.5 in rack tubes
- Free angle between the two bars
- Fine-tooth tilter, adjustable after locking
- Allows diagonal branches
- Fits stages and spaces that are not square
- Chrome finish
Racks are not rectangles
A rack's layout follows the drummer, not geometry. The side bars open up to make room for the arms, the front bar curves around the bass drum, a branch angles off to reach a percussion piece.
With right-angle clamps only, those shapes are impossible: you have to multiply short segments to approximate a diagonal. An adjustable clamp draws it directly, with a single part.
A diagonal brings everything closer to the drummer
A bar set at an angle puts more pieces within reach than a parallel bar. That follows directly from how the arms work: they move in arcs, not straight lines.
A rack that follows those arcs shortens the distance your sticks travel between strokes. On a busy setup, you feel the difference on fast passages long before you think to measure it.
Setting the angle without undoing the structure
On a structural part, every loosening puts the overall balance in question: the bars shift, the clamps on them follow, and the whole setup moves.
The fine-tooth tilter lets you correct the angle without releasing the main clamp. You adjust the rack's shape in place, instead of taking it apart to try another geometry.
Specifications
| Parts joined | Two 1.5 in rack tubes |
|---|---|
| Angle between bars | Adjustable |
| Angle lock | Fine-tooth tilter |
| Readjustment | Possible once locked |
What it is for
- Opening a side bar on a diagonal
- Fitting the shape of a narrow stage
- Bringing percussion closer to the drummer
- Correcting a rack's geometry without taking it apart
- Joining two rack sections that are not parallel
Compare with other manufacturers
Variable-angle clamps exist elsewhere, with varying degrees of freedom:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Gibraltar | Variable-angle rack clamps | Angle range varies by line |
| Pearl | Adjustable rack clamps | Designed around the brand's bar diameter |
| Tama | Articulated rack clamps | Coarser angle increment on some parts |
Frequently asked questions
- How wide an angle can it open to?
- The manufacturer describes an adjustable clamp without publishing the exact range. You see it during setup, and it covers the usual diagonals of a rack.
- Is it as rigid as a fixed clamp?
- No. An adjustable angle means a joint, and so a point that is less stiff than a fixed bracket. For load-bearing corners, a fixed clamp remains preferable.
- Can I use it to mount an arm?
- That is not its job: it joins two bars together. Mounting is done afterwards with a clamp placed on the bar.
- Does the setting hold after transport?
- The meshing teeth keep the angle as long as the clamp is tightened. A memory lock on each tube is a useful addition to mark the position.
