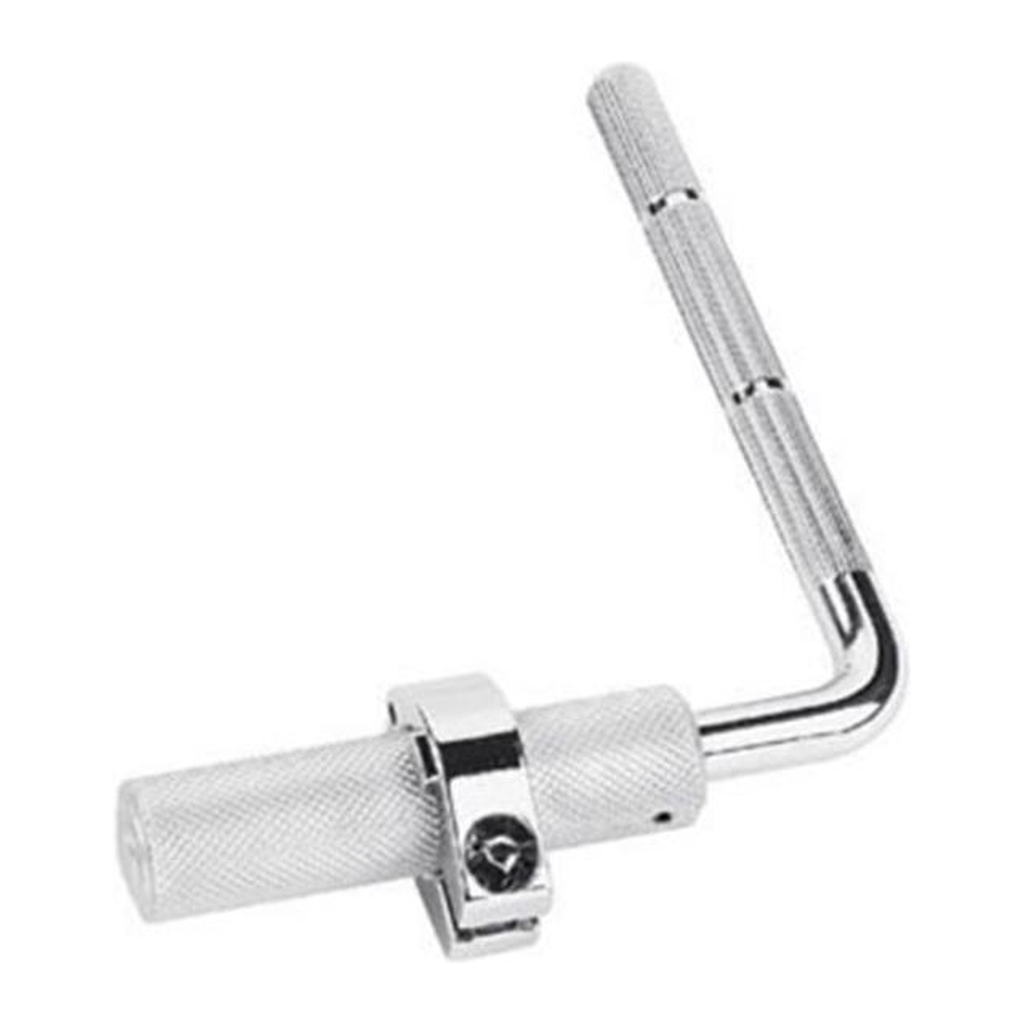

DW SMTA10 Knurled L-Arm for V-Clamp, with Memory Lock
This L-arm is the part that connects a clamp to whatever you want to hang on it. Its heavy-gauge rod is knurled along the full clamping length, which stops the clamp from rotating around the arm, and a 1 in memory lock keeps your setting from one setup to the next.
What sets it apart
- L shape: one section in the clamp, one section for the accessory
- Heavy-gauge rod that does not flex under an off-centre load
- Knurling on the clamping section, to prevent rotation
- DWSM780 1 in memory lock included
- 1 in section in the clamp, 10.5 mm section for the drum
- Made for V-clamps
Knurling against rotation, not against slipping
A clamp tightened on a smooth tube holds its height well, but nothing really stops the arm from turning on itself. Under the off-centre load of an accessory, that turning happens slowly: the item tilts over the course of the night without you ever seeing when it starts.
Knurling turns the grip into an interlock. The clamp bites into the ridges instead of resting on a smooth surface, and the orientation stays where you set it.
The memory lock, or the setup you never have to redo
A memory lock clamps onto the rod at the height you found. At the next setup, the arm drops down to the lock and stops in exactly the right place — no tape measure, no trial and error, nothing to remember.
On a six- or eight-piece setup, that saves several minutes every time you set up and, above all, gives you an identical setup from one night to the next. A drummer who finds their bearings plays better.
Why an L shape rather than a straight rod
A straight rod forces the accessory to stay in line with the clamping point. The L offsets the load to the side, which lets you place a drum or accessory next to the supporting tube rather than above it.
That offset is what makes a dense setup possible: every piece finds its place without the clamps overlapping on the same tube.
Specifications
| Type | L-arm |
|---|---|
| Sections | 1 in clamp side, 10.5 mm accessory side |
| Rod | Heavy-gauge, knurled |
| Included | One DWSM780 1 in memory lock |
| Mounting | In a V-clamp |
| Finish | Chrome |
What it is for
- Mounting an accessory on a V-clamp
- Offsetting a piece to the side of its supporting tube
- Dense setups where clamps compete for space
- A setup to reproduce exactly from one show to the next
- Adding an accessory holder to an existing frame
Compare with other manufacturers
L-arms and mounting rods from other manufacturers:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Gibraltar | Mounting series L-arm | Smooth or knurled rods depending on the model, memory lock sold separately |
| Pearl | Clamp mounting arm | Profiles and diameters specific to the brand's clamps |
| Tama | L-arm for multi-clamp | Thinner section, lower load capacity |
| Mapex | Accessory mounting rods | Designed mainly for small percussion accessories |
Frequently asked questions
- Do I need to already own a V-clamp?
- Yes. It is an arm, not a complete system: it mounts in a clamp that can take its rod.
- What exactly is the memory lock for?
- To remember a height. Clamped onto the rod, it acts as a stop: the arm drops back to the same level at every setup.
- Can I mount something other than a tom on it?
- Yes. The free section accepts accessories designed for this type of arm: accessory holder, small percussion, effects mount.
- Does the knurling damage the clamp?
- No, the clamp is designed for this type of surface. The knurling works on the arm's rod, not on the rack tube.
