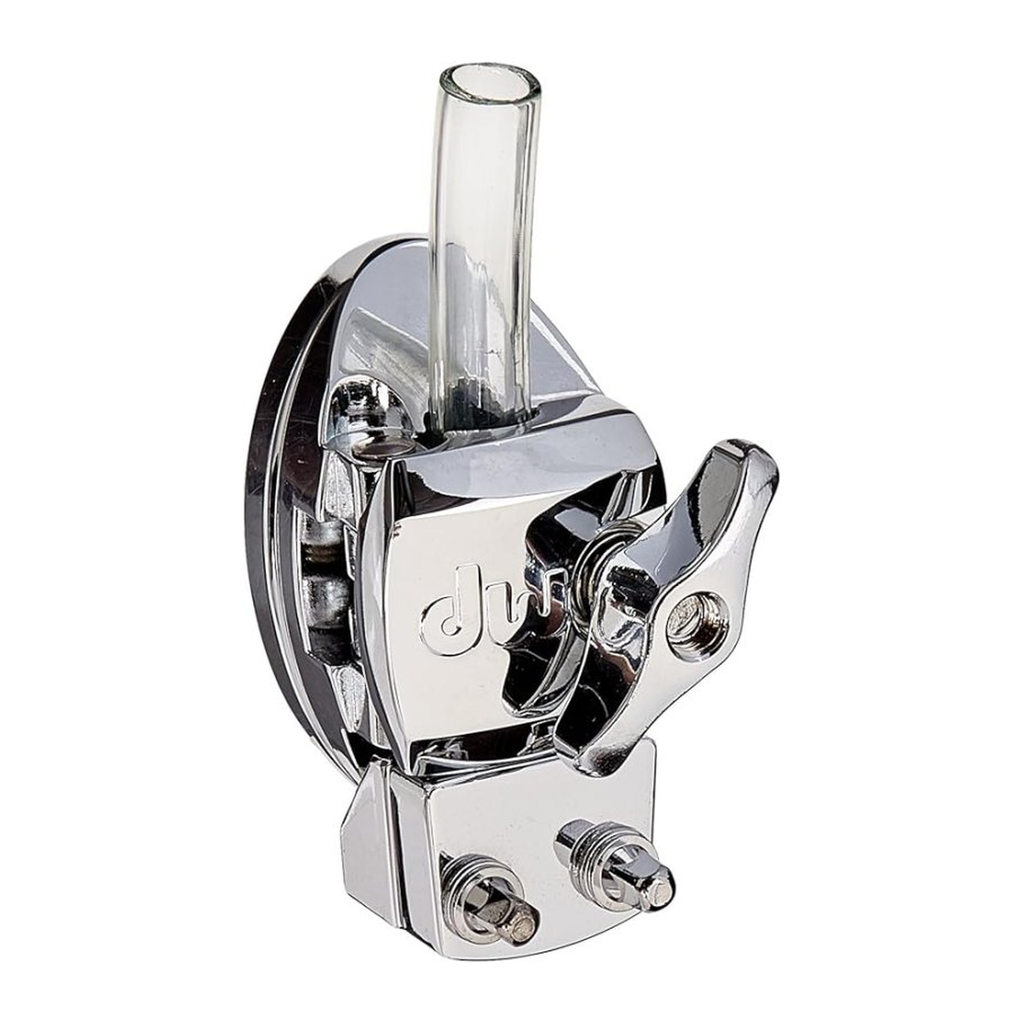

DW SMTB12CR Chrome Tom Bracket with Mounting Screws
This tom bracket screws onto the shell and takes the arm that holds it. It is the original part on Collector's suspended toms up to 2012, and the standard part on Performance toms since then. Its mounting screws are included, which solves half the problem when you replace an old part.
What sets it apart
- Mounts on the shell and takes the tom arm
- Mounting screws included
- Original part on Collector's suspended toms up to 2012
- Standard part on Performance toms
- Direct replacement on the shells concerned
- Chrome finish
Date your shell before ordering
A tom bracket screws into existing holes. That is the only thing that really matters: if the hole spacing does not match, the part will not mount, however good it is.
The useful reference point is 2012, which marks the change of generation on the high-end series' suspended toms. Before that date, this bracket was on the original shells; after, the manufacturer moved to a different part. On the Performance series, this bracket is the one in use today.
The screws included, and why that matters
The screws of a tom bracket are not ordinary screws. Their length is worked out for the thickness of the shell and of the part: too short and they do not bite enough; too long and they stick out inside the shell and reach the head.
Having them in the box saves you that calculation and the risk that comes with it. On a repair, the missing part is often what holds everything up: you can find the bracket, but not the original screws.
What a damaged bracket does to the sound
A loose or bent bracket lets the shell vibrate against its mount. The result is an unwanted noise, often described as a rattle, that gets wrongly blamed on the head or the hoop.
Checking the mount before looking elsewhere saves time. A bracket in good condition and properly screwed in gives the shell back its stability, and the noise goes away without touching the tuning.
Specifications
| Type | Tom bracket that screws onto the shell |
|---|---|
| Screws | Included |
| Original fitment | Collector's suspended toms up to 2012 |
| Current fitment | Performance toms |
| Finish | Chrome |
What it is for
- Replacing a damaged tom bracket
- Bringing back a shell whose mount was lost
- Matching the hardware on a mismatched kit
- Repairing a suspended tom from before 2012
- Fitting a Performance shell to the original standard
Compare with other manufacturers
Tom brackets are not interchangeable between brands, because the screw spacing differs:
| Manufacturer | Their equivalent | Where it differs |
|---|---|---|
| Yamaha | Tom brackets for the brand's shells | Their own hole spacing and geometry |
| Pearl | Suspended tom mounts | Different isolation system |
| Tama | Tom brackets for the brand's shells | Shell drilling not compatible |
| Mapex | Original tom mounts | Different plate dimensions |
Frequently asked questions
- How do I know if this is the right part for my tom?
- Look at the date and the series. This bracket was on Collector's suspended toms up to 2012 and is on Performance toms; beyond that, compare the spacing of the existing holes.
- Are the screws included?
- Yes, the mounting screws are part of the set.
- Can I mount it on another brand's shell?
- Only if the drilling matches, which is rare. Drilling a shell to fit a part is permanent, and a job for a specialist.
- Do I have to take the head off to replace it?
- Usually yes, at least the resonant head, to reach inside and hold the nuts while tightening.
