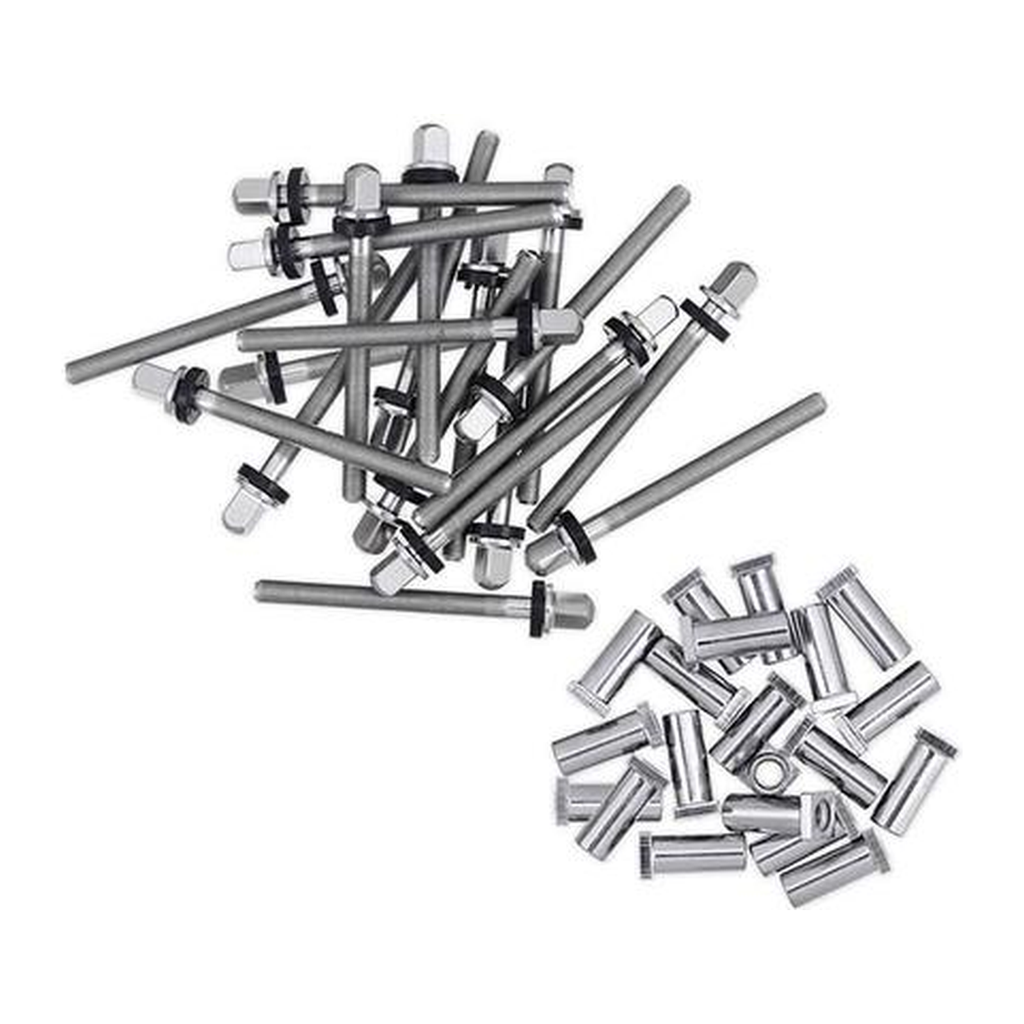

DW True-Pitch 50 Tension Rods and Receivers for 5 in Snare Drum
True-Pitch 50 rods are drum tension rods with 50 threads per inch, and this set is made for a snare drum 5 in deep. The fine thread makes every quarter turn a much finer adjustment than on an ordinary rod.
What sets it apart
- 50 threads per inch, according to the manufacturer
- 20 rods, enough for both heads of a 10-lug drum
- Receivers included
- Stainless steel
- Sized for a shell 5 in deep
What 50 threads per inch change under the key
On an ordinary rod, a quarter turn moves the tension by a distinct step: you often overshoot the point you want and have to back off. More threads means a smaller thread pitch, so less travel with each move.
The manufacturer describes the result as a wider tuning range for the drum. In practice, the drummer reaches in-between settings that a coarse-thread rod skips over: the narrow zone between a head that cracks and a head that chokes.
Why 20 rods, not 10
A snare drum has two heads. A 10-lug drum therefore needs 20 rods to be fully fitted: 10 on top, 10 on the bottom. That is the arithmetic behind what is in the box.
Replacing only half of them leaves a mix of thread pitches on the same drum. Nothing breaks, but the tuning becomes impossible to reproduce: a quarter turn no longer has the same effect from one lug to the next.
The receivers are part of the set
A finer thread will not fit a receiver made for a coarse thread. That is why the receivers come with the rods: they replace the ones housed in the lugs.
So factor the installation into the decision. It is not a delicate job, but it means taking the lugs off one by one rather than just screwing in new rods.
Specifications
| Thread | 50 threads per inch |
|---|---|
| Material | stainless steel |
| Quantity | 20 rods |
| Receivers | included |
| Intended shell | snare drum 5 in deep |
What it is for
- A 5 in deep snare drum that needs finer tuning
- A recording drum tuned to within a semitone
- Refurbishing a drum whose rods are worn
- A snare drum that goes out of tune between gigs
Compare with other manufacturers
Other manufacturers take different routes to tuning precision:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Tama | Reinforced-thread tension rods | Standard thread pitch, with the focus on strength |
| Pearl | Tension rods with built-in washer | Seeks stability through the washer, not through the thread count |
| Gibraltar | Replacement tension rods by length | Catalogue organized by size, no receivers |
| Ludwig | Original snare drum tension rods | Stock part with a standard thread, for a like-for-like replacement |
Frequently asked questions
- Are drum tension rods universal?
- No. Thread, length and head style vary from one manufacturer to another, and this set also changes the receivers. Check the depth of your shell before ordering.
- What should I do with the original rods?
- Keep them. If you sell the drum, the buyer may want the original configuration, and a spare set always comes in handy.
- Should I lubricate tension rods?
- A drop of white grease on the thread at every head change is enough. A dry thread squeaks and throws off how the tension feels under the key.
- Can I install them on another brand's snare drum?
- Only if the shell depth and the lug housings match. The set is designed around DW lugs; anywhere else, check the fit part by part before buying.
