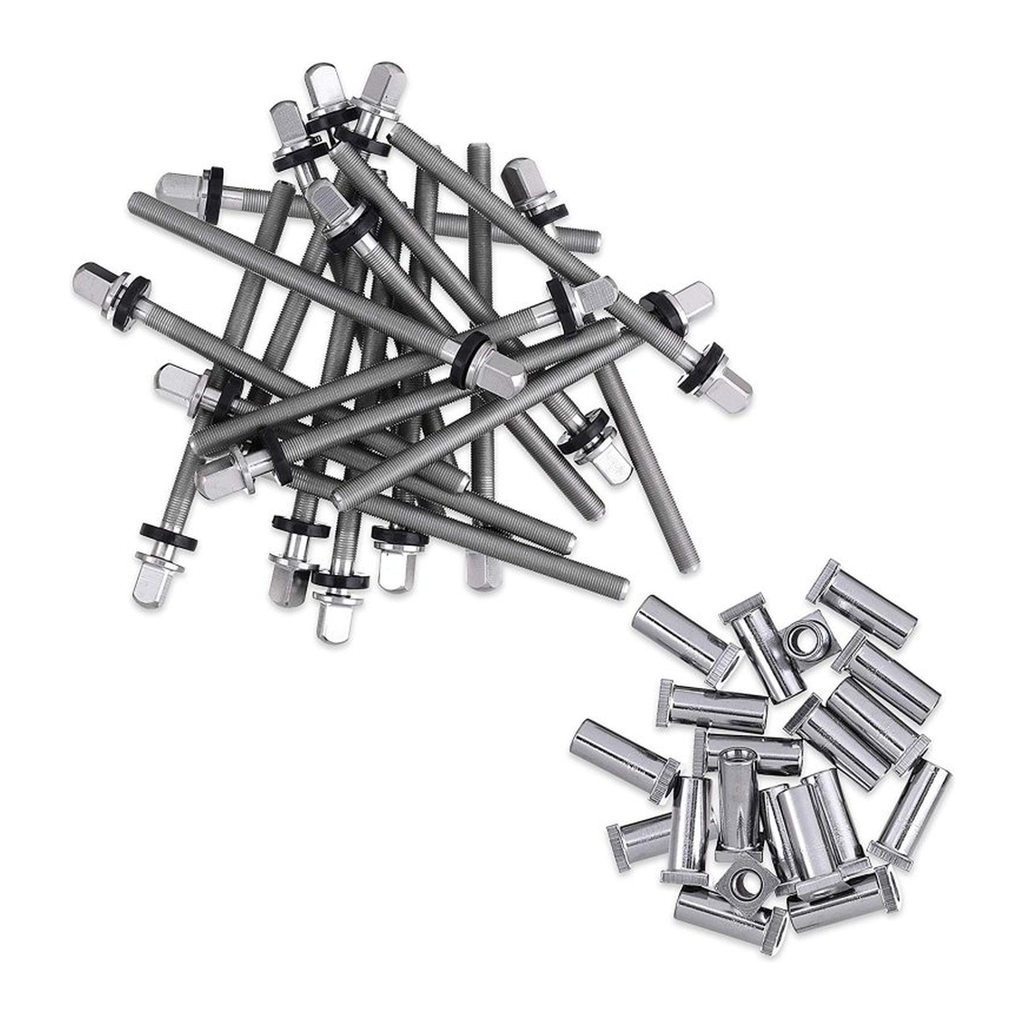

DW True-Pitch 50 Tension Rods and Receivers for 6.5 in Snare Drum
This True-Pitch 50 set fits 6.5 in snare drums, the deep shells. It is on this size that a fine thread pitch helps the most: the taller the column of air, the more you hear the gap between two neighbouring settings.
What sets it apart
- Length sized for a 6.5 in shell
- Thread of 50 threads per inch
- 20 rods: both heads of a 10-lug drum
- Receivers included
- Stainless steel
A deep shell is less forgiving of guesswork
A 6.5 in snare drum encloses noticeably more air than a 5 in shell. That volume of air sustains the sound longer, which exposes anything that is not clean: a batter head that is not evenly tuned produces a doubled decay, and you hear it.
Getting a head in tune with itself from one point to the next then calls for tiny corrections. That is exactly where a fine thread pitch pays off: the move becomes smaller than the error you are trying to fix.
The low end, and the point where it gives out
A deep shell goes low. But with too little tension, the head loses its rebound and the tone collapses: the sound goes floppy and the drum stops responding to soft dynamics.
The usable zone between the two is narrow. With coarse-thread rods, the drummer passes through it without being able to stop there; with a fine thread, you settle in and stay.
An installation that doubles as a full service
Swapping the receivers means opening up the drum. Make the most of it: check that the butt plate is tight, the condition of the throw-off and the cleanliness of the bearing edges.
Most drums rebuilt this way sound better for two reasons at once, the new hardware and the cleaning. You may as well do both on the same day.
Specifications
| Shell | 6.5 in snare drum |
|---|---|
| Rods | 20 |
| Receivers | supplied |
| Threads | 50 per inch |
| Material | stainless steel |
What it is for
- A deep 6.5 in snare drum
- A drum tuned low for rock and metal
- A metal shell where the slightest tension difference is audible
- Refurbishing a vintage drum
Compare with other manufacturers
What other manufacturers offer for deep shells:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Gibraltar | Long tension rods for deep shells | Sold individually, standard thread, no receivers |
| Ludwig | Original deep snare drum tension rods | Stock part, designed as a like-for-like replacement |
| Pearl | Extended-head tension rods | Easier key access, thread pitch unchanged |
| Tama | Metal snare drum tension rods | Optimized for steel shells, not for fine tuning |
Frequently asked questions
- Does a deep snare drum need different tension rods?
- Yes. The rod has to pass through the lug and engage the receiver: its length follows the depth of the shell. A 5 in set does not fit a 6.5 in drum.
- How many tension rods does my snare drum need?
- Count the lugs and multiply by two, since both heads are tensioned. Ten lugs means twenty rods.
- Does a fine thread make tuning take longer?
- A few more turns of the key at the start, yes. In return, you reach the target point without overshooting and coming back, and the total often ends up shorter.
- How do I clean grimy tension rods?
- A soft brush, soapy water, complete drying, then a trace of grease on the thread. Salt from sweat is what seizes rods, not dust.
