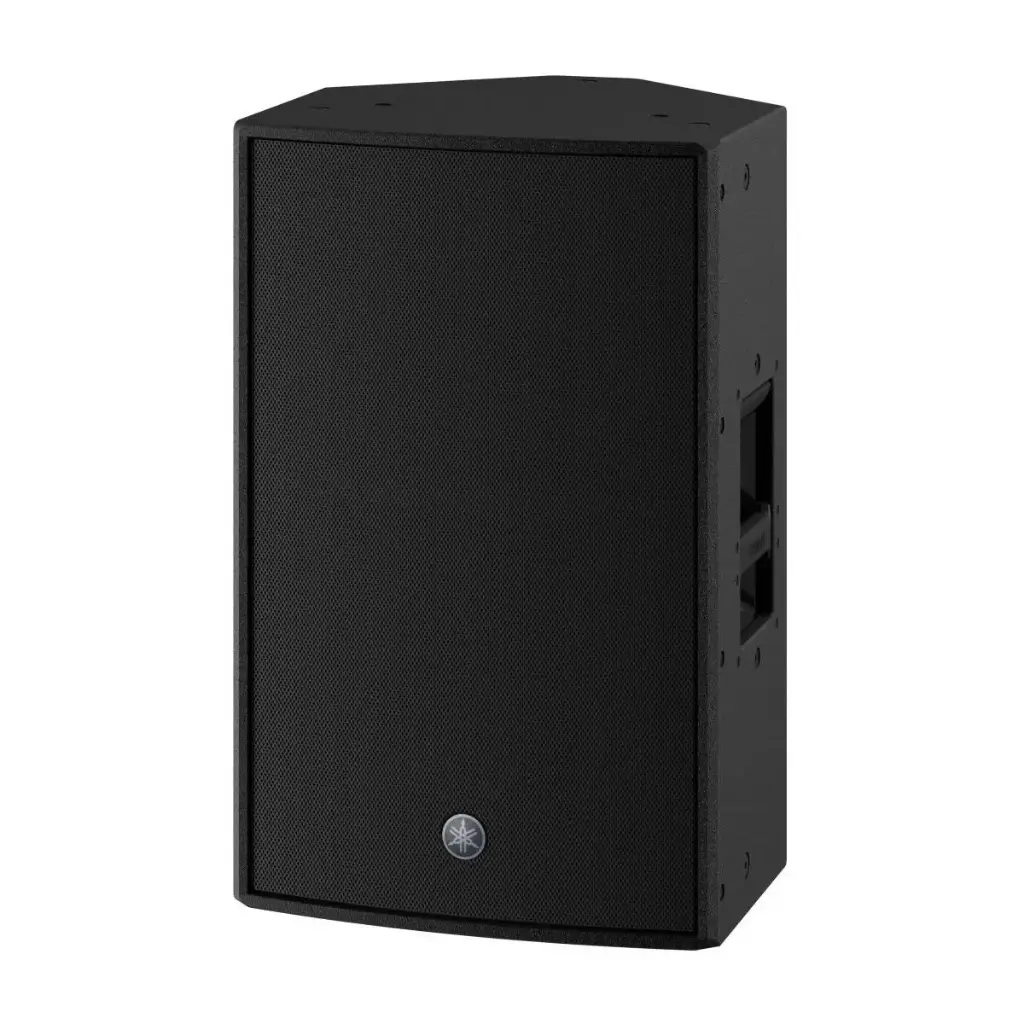

Yamaha DZR12 - 12" Amplified Speaker -
Raw power combined with studio-level processing intelligence.
The Yamaha DZR12 is a two-way active loudspeaker that redefines the standards of professional sound reinforcement. With a massive 2000W Class D amplifier and state-of-the-art 96kHz DSP processing, it delivers a phenomenal 139dB SPL without ever sacrificing clarity. Its robust plywood cabinet with a polyurea coating makes it the ultimate tool for touring, permanent installations, and demanding DJs. Ready to copy into the "Customer Description" field.
This content will be shared across all product pages.
Raw power combined with studio-grade processing intelligence. The Yamaha DZR12 is a two-way active loudspeaker that redefines the standards of professional sound reinforcement. With a massive 2000W Class D amplifier and cutting-edge 96kHz DSP processing, it delivers a phenomenal 139dB SPL without ever sacrificing clarity. Its rugged plywood cabinet with a polyurea coating makes it the ultimate tool for touring, permanent installations, and demanding DJs.
The Sound Authority: Why the DZR12 is a must-have
The Yamaha DZR12 solves the fundamental problem of high-power active speakers: distortion at high volumes and a lack of definition in the midrange. Thanks to its advanced FIR-X filtering , the DZR12 maintains a linear phase response, ensuring a crystal-clear soundstage even when pushing the amplifier to its 139 dB SPL limits.
For professionals, this guarantees complete versatility. Its rotating horn allows for vertical or horizontal installation (stage monitor), while the integrated LCD screen enables complex preset management in seconds. This speaker eliminates the need for expensive external processors while offering unparalleled thermal reliability.
Full Technical Specifications (Absolute Extraction)
| Category | Characteristic | Technical Details DZR12 |
| Kind | Configuration | 2-way, Bi-amplified, Bass-reflex |
| Performance | Frequency range (-10dB) | 39 Hz - 20 kHz |
| Blanket | Dispersion (H x V) | 90° x 60° (Rotating Pavilion) |
| LF transducer | Diameter / Coil / Magnet | 12", 3" Voice Coil, Neodymium |
| HF transducer | Diaphragm / Outlet / Magnet | 2" Voice Coil, 1" Throat Compression, Neodymium |
| Crossover | Type / Frequency | 1.7 kHz (FIR-X Tuning) |
| Peak Power | Total / LF / HF | 2000W / 1000W / 1000W |
| Power Cont. | Total / LF / HF | 950W / 850W / 100W |
| Max SPL | Maximum output level | 139 dB SPL (1m, on axis) |
| DSP treatment | Resolution / FIR-X | 96kHz and FIR-X Tuning |
| Connectivity | Entrances | 2 x XLR/6.3mm Combo (Line/Mic) |
| Outer Connection | Exits | 2 x XLR (Thru/Loop/Mix) |
| USB | Functionality | USB for charging/data backup |
| Construction | Case material | Plywood with Polyurea |
| Dimensions | (L x H x D) | 410 mm x 646 mm x 394 mm |
| Weight | Net weight | 21.4 kg (47.2 lbs) |
| Food | Kind | Universal switching (PFC) |
Comparative Analysis
Based on consensus from Sound on Sound, ProSoundWeb and Gearspace.
| Alternative Product | Market Segment | Comparative Analysis | Available at Garage à Musique |
| QSC K12.2 | Standard Prosumer | Lighter, but lower SPL (132 dB) and less deep DSP (48kHz). | Available here |
| JBL SRX812P | Professional Touring | Excellent bass, but larger casing and DSP limited to 48kHz. | Available here |
| Electro-Voice ETX-12P | High-end | Its warm sound, but higher FIR processing latency than the Yamaha. | Available here |
| RCF ART 945-A | Premium Italian | Equivalent 15" woofer, but LCD interface less intuitive than the DZR. | Available here |
| Meyer Sound ULTRA-X20 | Ultra-High End | Superior fidelity, but triple the price and requires an external processor. | Product not listed |
| PreSonus CDL12P | Hybrid Line Array | Better vertical dispersion, but less punch in "Full Range" mode. | Available here |
| Martin Audio BlacklineX Powered | English Signature | Its sound is very musical, but it has less raw power reserve (Peak). | Product not listed |
| Bose F1 Model 812 | Flexibility | Unique flexible array, but lacks authority in the low-midrange vs DZR12. | Available here |
| Mackie DRM212 | High-Power | Good power, but thermal reliability below Yamaha standards. | Product not listed |
| LD Systems ICOA 12 A | Entry-level Pro | Very affordable, but plastic chassis and much lower SPL. | Product not listed |
History & Evolution
The DZR series represents the pinnacle of Yamaha's active loudspeaker evolution. It succeeds the DSR series, which was already a benchmark for robustness. The move to the DZR platform introduced, for the first time, 96kHz processing and advanced phase-correction FIR-X filters in a portable format. This technology, derived from Yamaha's high-end touring processors, places the DZR12 in a performance category previously reserved for large-scale concert systems.
Cultural References & Artists
Yamaha's expertise in professional audio is used by the world's leading engineers:
Norah Jones : Yamaha est souvent choisi pour la fidélité des voix sur ses tournées.
Chick Corea : Utilisateur de longue date des systèmes de monitoring Yamaha.
Montreux Jazz Festival : Yamaha est un partenaire technique historique fournissant l'audio.
Dave Grusin : Préfère la clarté des systèmes de haut-parleurs Yamaha pour ses productions.
Nathan East : Teste régulièrement la réponse en fréquence des subwoofers et enceintes DZR.
Steve Gadd : Pour la reproduction précise des transitoires de batterie.
Alicia Keys : Systèmes Yamaha utilisés en studio et en répétition.
Jamie Cullum : Configuration de scène souvent appuyée par des moniteurs Yamaha.
Vinnie Colaiuta : Exige la précision chirurgicale pour son retour de scène.
Pat Metheny : Apprécie la linéarité de phase des nouveaux processeurs DSP Yamaha.
Glastonbury Festival : Les zones de support technique utilisent souvent la série DZR pour leur fiabilité.
Snarky Puppy : Pour la gestion complexe des multiples sources d'instruments.
Jacob Collier : Utilisateur de l'écosystème numérique Yamaha (Rage/DZR).
Imagine Dragons : Yamaha pro audio présent dans leurs configurations de tournée.
John Legend : Les ingénieurs privilégient la série DZR pour les événements corporatifs de prestige.
FAQ (Frequently Asked Questions)
Can the Yamaha DZR12 be used as a stage monitor?
Yes. Thanks to its asymmetrical design and rotating horn, you can place it horizontally at the perfect angle for stage monitoring, while optimizing dispersion for the musician.
What does FIR-X treatment actually do?
Unlike traditional filters that create phase distortions at the cutoff point, FIR-X filtering adjusts the response time of each frequency, resulting in exceptional clarity and a much more accurate sound image.
Does the speaker overheat during prolonged use at high volume?
No. The DZR12 features a temperature-controlled cooling system and intelligent protection circuits that monitor the Class D amplifier temperature in real time to prevent any safety shutdowns.
Can I save my EQ settings to a USB flash drive?
Absolutely. The USB port allows you to export your presets (EQ, Delay, Routing) to copy them to other DZR speakers or to keep a backup of your room-specific configuration.
What is the latency of the 96kHz DSP?
Latency is negligible (less than 2ms), which is crucial for live performances so that musicians do not feel any lag between their playing and the sound produced.
Is the Polyurea casing really durable?
Polyurea coating is the same type of material used to protect truck bodies. It is extremely resistant to scratches, impacts, and light weathering, protecting Baltic birch wood.
Is it necessary to use a subwoofer with the DZR12?
With a frequency response down to 39 Hz, the DZR12 delivers impressive bass in "Full Range" mode. However, for dance events or major rock concerts, we recommend pairing it with a DXS18XLF subwoofer.
How does D-CONTOUR mode work?
It's intelligent multi-band compression. The "FOH/MAIN" mode boosts bass and treble frequencies for public broadcasting, while the "MONITOR" mode attenuates them to prevent feedback on stage.
Is the DZR12 compatible with Dante networks?
This particular model is analog. If you require network connectivity, you should choose the DZR12-D version, also available from Garage à Musique.
Why buy Yamaha from Garage à Musique?
Garage à Musique is an authorized retailer offering local expertise in Quebec. We provide top-notch after-sales technical support and guarantee the authenticity of every Yamaha product with the full manufacturer's warranty.
