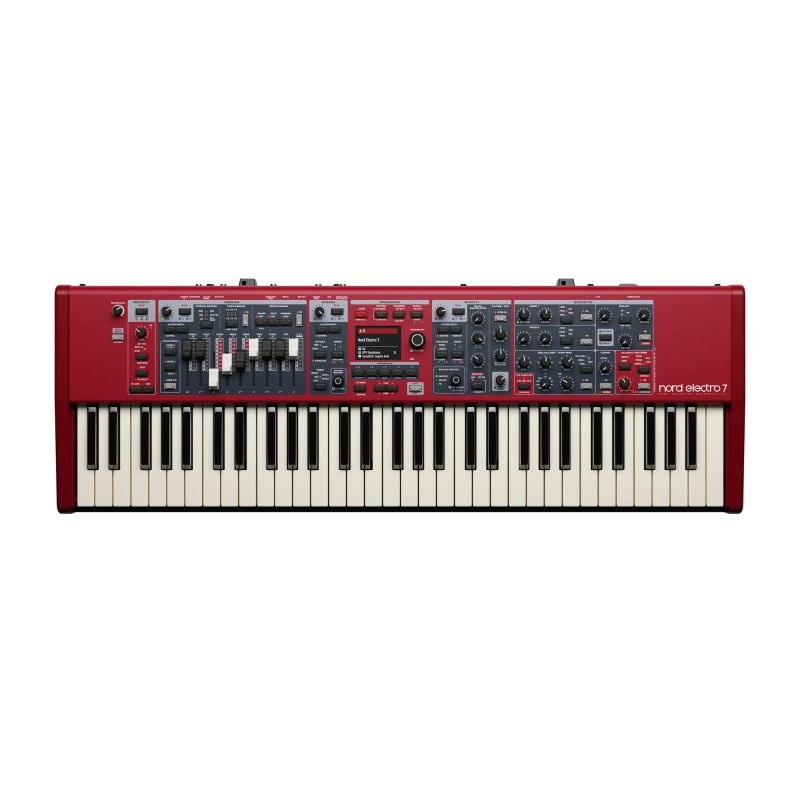

Nord Electro 7 61 Stage Keyboard — 61 Semi-Weighted Waterfall Keys
Organ, piano and synth in 8.3 kg: the Electro 7 61 takes the organ engine and rotary speaker of the Nord Organ 3, keeps physical drawbars and adds a sample, analog and FM synth. The most compact of the three Electro 7 models.
Between the rehearsal room, the Sunday service and the Saturday night show, a light keyboard that does it all changes a musician's week. The Nord Electro 7 61 is a 61-key stage keyboard that brings together an organ based on the Nord Organ 3 engine, a piano section and a synth, on a semi-weighted waterfall keyboard. At 8.3 kg, it is the lightest of the three Electro 7 models.
Highlights
- Organ based on the Nord Organ 3 engine: B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe, with full polyphony.
- Physical drawbars with LED indicators, two organ manual presets and Live drawbars.
- Rotary speaker from the Nord Organ 3: Close, Wide and XY microphone positions, dedicated tube drive.
- Piano section compatible with the Nord Piano Library, 120-voice polyphony.
- Synth: samples, analog waveforms and FM synthesis, samples from the Nord Sample Library.
- Dedicated effects for organ, piano and synth, new Brit and Suitcase amps, new Spring reverb.
- Colour display, 500 programs and 5 Live programs, program changes without cut-offs.
Specifications
| Keyboard | 61 keys (C to C), semi-weighted, waterfall |
|---|---|
| Organ | B3, B3+Bass, Soft B3, Vox, Farfisa, Pipe; B3 percussion with Poly option; vibrato and chorus with B3 Deep mode |
| Drawbars | Physical, with LED indicators; 2 organ manual presets and Live drawbars |
| Rotary speaker | Nord Organ 3 emulation; Close, Wide and XY microphones; tube drive |
| Piano | Grand, upright, electric, digital and layer, clavinet and harpsichord, misc and mallets; 120 voices |
| Synth | Samples, analog, FM; 30+ voices; mono, legato and glide modes; unison |
| Effects | Mod 1: pan, tremolo, wah, ring modulator; Mod 2: phaser, flanger, chorus, vibe, ensemble |
| Amp and equalizer | Twin, Small, Suitcase, JC, Brit; 3-band equalizer with sweepable mid |
| Delay, compressor, reverb | Delay with tap tempo and analog mode; compressor; Spring, Room, Stage, Hall, Cathedral reverb |
| Memory | 500 programs (20 banks of 25), 5 Live programs |
| Split | Split point with 9 positions, crossfades between zones |
| Outputs | 2 unbalanced ¼" L and R audio outputs; ¼" headphones |
| Inputs | ⅛" monitor; expression pedal (TRS); sustain; rotary speaker control or foot switch |
| MIDI and USB | MIDI In, MIDI Out; USB type B (MIDI, updates, sound transfer) |
| Dimensions | 90.1 × 10.4 × 29.4 cm |
| Weight | 8.3 kg |
| Included | User manual, power cord |
61, 73 or HP: choosing your Electro 7
All three Electro 7 models share the sound sections described above. The 61 covers five octaves, from C to C, and weighs 8.3 kg. The 73 adds an octave, from E to E, on the same semi-weighted waterfall keyboard, for 9.5 kg. The HP keeps 73 keys, but with a weighted Triple Sensor Kawai Hammer Action Portable keybed, for 13 kg. One detail matters when choosing: Nord reserves the pitch stick and modulation wheel for the 73 and HP versions. The 61 is therefore the choice of the organist who travels light; players who take a lot of synth solos should look at the 73.
Pedals and accessories
- Sustain: Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 or a switch-type pedal.
- Expression: Nord EP-15 and EP-30; the pedal can also control the synth filter and many effects.
- Rotary speed: Nord Half Moon Switch, with a mounting bracket provided on the Electro 7 61 and 73.
- Transport: Nord Soft Case, soft case in the 61 size.
- At rest: Nord Dust Cover in the 61 size.
Alternatives from other brands
| Model | Keyboard | Distinctive feature |
|---|---|---|
| Nord Electro 7 61 | 61 keys, semi-weighted, waterfall | Nord Organ 3 organ, piano and synth; 8.3 kg |
| Yamaha YC61 | 61 keys, semi-weighted, waterfall | VCM organ, AWM2 and FM sounds; 7.1 kg |
| Korg Nautilus 61 | 61 keys, semi-weighted | Workstation with 9 engines, including the CX-3 organ; 13 kg |
Frequently asked questions
- Electro 7 or Electro 6: what changes?
- The Electro 7 organ is based on the Nord Organ 3 engine, with its rotary speaker; the Electro 6 organ used the C2D engine. The Electro 7 synth adds analog waveforms and FM to the samples, each section has its own effects, and the display is in colour.
- Can I add sounds?
- Yes. With the Nord Sound Manager software, you add, replace and organize pianos from the Nord Piano Library and samples from the Nord Sample Library.
- Does the Half Moon Switch mount on the Electro 7 61?
- Yes. Nord lists the Half Moon Switch for the Electro 7 61 and 73, which have a bracket provided to mount it on the keyboard. It controls the rotary speaker speed.
- Which expression pedal should I use?
- The expression input is a ¼" TRS jack. Nord offers the EP-15 and EP-30, and the pedal can be assigned to the synth filter as well as to most effects.
