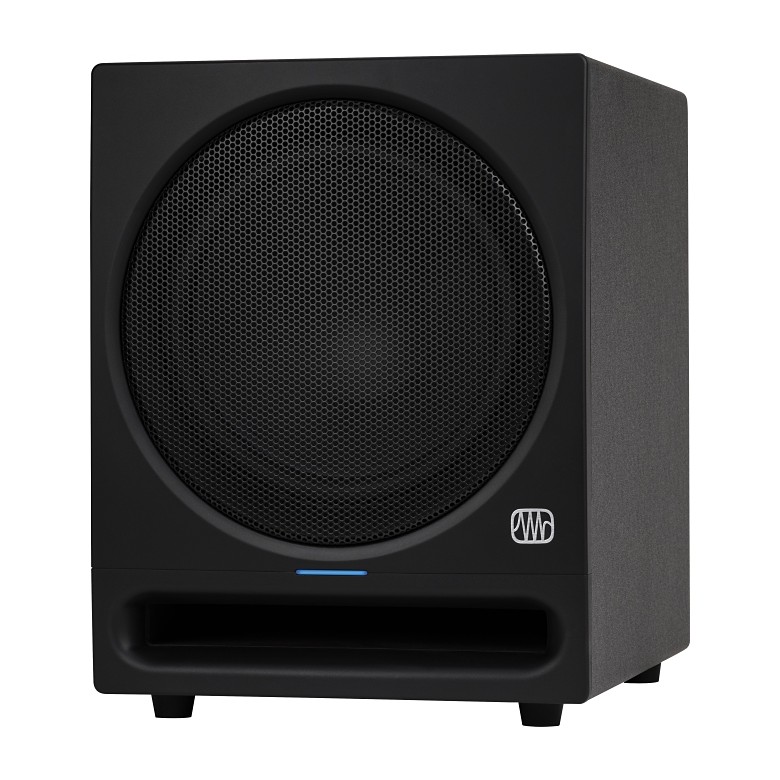

PreSonus Eris Pro Sub 10 10" Active Studio Subwoofer
The PreSonus Eris Pro Sub 10 is a 10-inch active studio subwoofer, with its driver and port both facing forward, that extends your monitoring down to 20 Hz. It solves a specific problem: 5- to 8-inch monitors don't show what's happening below 40 Hz, and that's where a mix falls apart on a big system.
What sets it apart
- 10" glass-composite driver, light and rigid
- 170 W RMS of Class AB power, 113 dB peak at one metre
- Lowpass filter continuously variable from 50 to 130 Hz
- Included footswitch to bypass the sub with your foot
The bottom of the mix, finally measurable
PreSonus aims it at serious personal studios and professional production rooms, alongside Eris Pro and Eris Studio monitors. The goal isn't more volume: it's hearing the low end as precisely as the rest of the spectrum, thanks to a rigid cone that keeps distortion down.
The driver and bass-reflex port fire forward, which makes it easier to place under a desk or between two monitor stands.
A clean hand-off with your monitors
The lowpass filter sets where the sub stops; the switchable highpass removes everything below 80 Hz from the signal sent to the monitors, so they don't fight the sub. Input gain runs from -30 to +6 dB, and a polarity switch corrects a sub placed away from the speakers.
The footswitch bypasses the sub, the highpass filter and the sub output all at once: you compare your mix with and without the low end without leaving your chair. A ground-lift switch also deals with hum.
Specifications
| Driver | 10" glass composite, front-firing |
|---|---|
| Enclosure | Bass reflex, front port |
| Amplification | 170 W RMS Class AB |
| Response | 20 Hz to 200 Hz |
| Peak | 113 dB SPL at 1 m |
| Inputs | 2 XLR, 2 balanced 1/4" TRS, 2 RCA |
| Outputs | 2 XLR, 2 TRS to the monitors, 1 XLR sub |
| Filters | Lowpass 50 to 130 Hz, switchable 80 Hz highpass |
| Dimensions (W x H x D) | 32 x 40 x 40.6 cm |
| Included | One-button footswitch, IEC power cable |
What it's for
- Mixing rooms where the main monitors roll off around 40 Hz
- Electronic music or film scoring with lots of sub-bass
- 2.1 system with Eris Pro or Eris Studio monitors
Compared with other manufacturers
Among monitor makers, the 10-inch subwoofer is a common format. Here are three equivalents to compare.
| Manufacturer | Subwoofer | Driver | Notable feature |
|---|---|---|---|
| PreSonus | Eris Pro Sub 10 | 10" front-firing | 170 W Class AB, bypass footswitch included |
| KRK | S10.4 | 10" glass-aramid | Four-position crossover, bypass footswitch |
| ADAM Audio | T10S | 10" down-firing | 130 W Class D, 80 or 120 Hz filter |
| JBL | LSR310S | 10" facing the floor | 200 W Class D, XLF mode for club-style bass |
Frequently asked questions
- What is the Eris Pro Sub 10 frequency response?
- PreSonus rates it from 20 Hz to 200 Hz.
- Does the Eris Pro Sub 10 work with Eris Studio 8 monitors?
- Yes. PreSonus presents it as the companion to its Eris Pro and Eris Studio monitors.
- What are the Eris Pro Sub 10 dimensions?
- 32 cm wide, 40 cm high and 40.6 cm deep.
- What is the included footswitch for?
- It bypasses the subwoofer, the highpass filter and the sub output, so you can hear the mix with or without the added low end.
