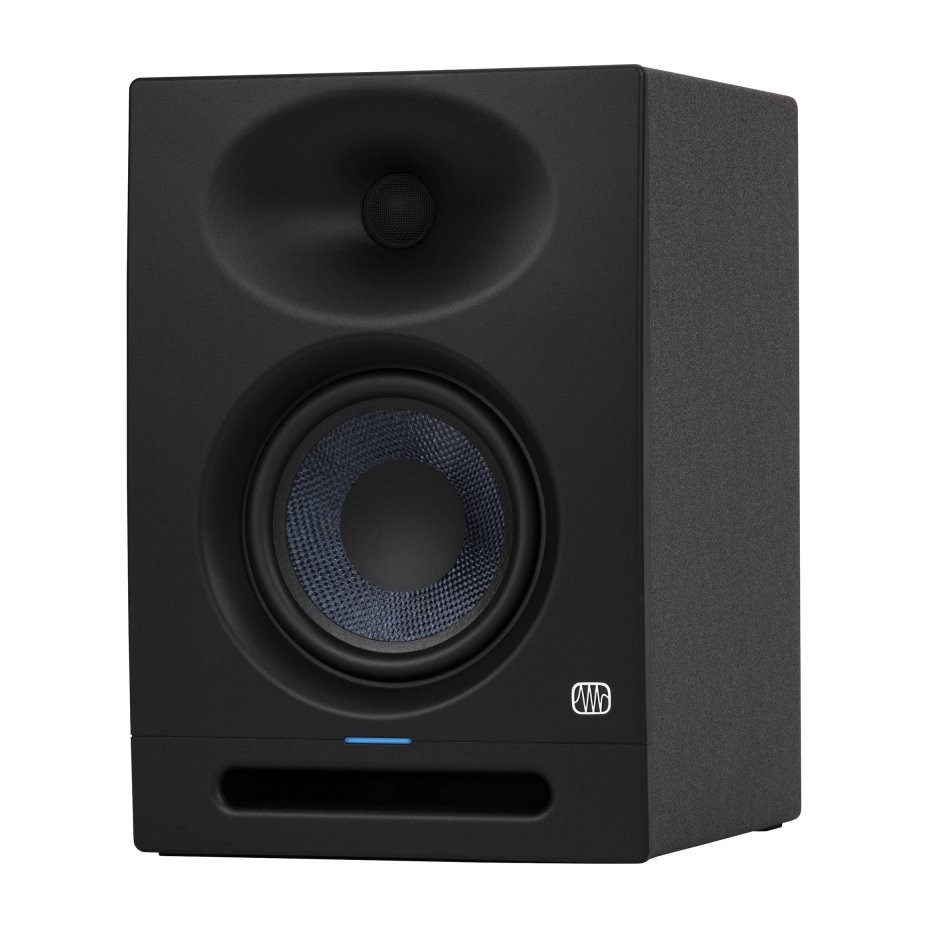

PreSonus Eris Studio 5 5.25" Active Studio Monitor
The PreSonus Eris Studio 5 is a 5.25-inch active studio monitor, the size that bridges the desk and the real studio: enough bass to mix without guessing, compact enough for a room at home, and ready to take a subwoofer later on.
What sets it apart
- 5.25 in. woofer and 1 in. silk-dome tweeter
- 80 W of Class AB biamplification
- 48 Hz to 20 kHz response, 102 dB SPL peak
- 120 x 60 degree EBM waveguide
- Low cut at 80 or 100 Hz to integrate a subwoofer
- Automatic standby after 40 minutes
The middle of the Eris Studio range
With 80 W split between the two ways (45 W for the low end, 35 W for the highs), the Eris Studio 5 reaches down to 48 Hz without a subwoofer and hits 102 dB peak at one metre. That is enough to judge a bass line in a room at home.
The 292 mm tall cabinet stays reasonable on a stand or a shelf.
Growing into a 2.1 system
The low cut, set at 80 or 100 Hz with a -12 dB per octave slope, removes the bottom of the spectrum from the monitors when you add a subwoofer: each one works in its own range.
The high and mid controls, ±6 dB, and Acoustic Space round out the adjustment to the room.
Specifications
| Woofer | 5.25 in. woven composite |
|---|---|
| Tweeter | 1 in. ultra-low-mass silk dome |
| Amplification | 80 W Class AB (45 W + 35 W) |
| Frequency range | 48 Hz to 20 kHz |
| Peak level at 1 m | 102 dB SPL |
| Crossover | 3.5 kHz |
| Low cut | Flat, 80 Hz or 100 Hz (-12 dB per octave) |
| Connections | 1 XLR, 1 1/4 in. TRS, 1 RCA |
| Footprint | 203 x 292 x 223 mm |
What it's for
- Home studio mixing complete songs
- Production room that will move to a subwoofer system later
- Reference listening for electronic music or hip-hop in an apartment
Compared with other manufacturers
The 5-inch monitor is the most contested category in the home studio. A few equivalents, based on their manufacturers' figures.
| Manufacturer | Model | Woofer size | What sets it apart |
|---|---|---|---|
| PreSonus | Eris Studio 5 | 5.25 in. | EBM waveguide, 80 W |
| Yamaha | HS5 | 5 in. | 70 W, biamplified |
| KRK | Rokit 5 (Generation Five) | 5 in. Kevlar | DSP with 25 correction combinations |
| JBL | 305P MkII | 5 in. | Image Control waveguide |
Frequently asked questions
- Eris Studio 5 or Yamaha HS5: what changes?
- On paper, the Eris Studio 5 has a 5.25 in. woofer and 80 W; the Yamaha HS5, a 5 in. woofer and 70 W according to Yamaha. The Eris adds a wide-dispersion EBM waveguide.
- What are the dimensions of the Eris Studio 5?
- 203 mm wide, 292 mm tall and 223 mm deep.
- Can I add a subwoofer to the Eris Studio 5?
- Yes. Its 80 or 100 Hz low cut is there precisely to hand the bottom end over to a subwoofer.
