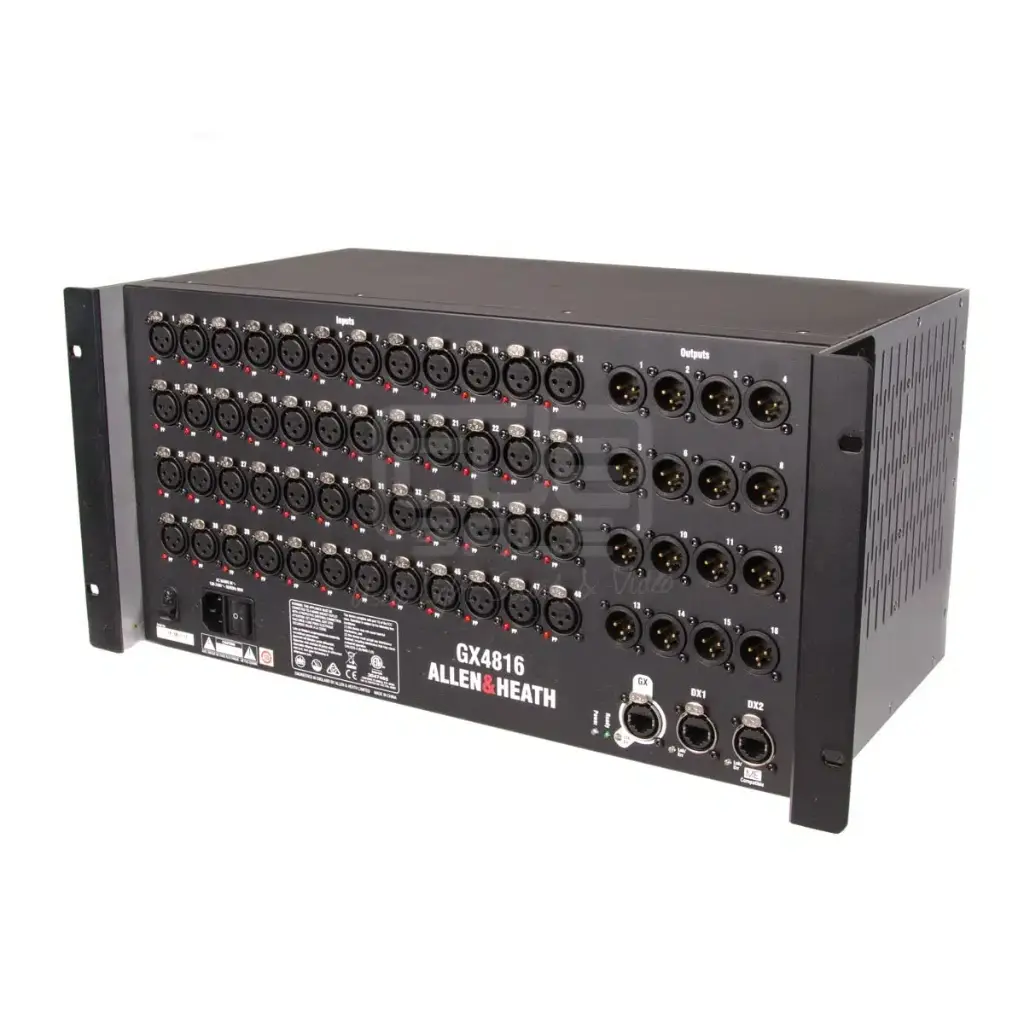

Allen & Heath GX4816 - Portable GX Extender - Digital Audio
The ultimate expansion for your 96kHz ecosystem: power, density, and transparency. The Allen & Heath GX4816 is the essential stage expander for demanding engineers. With 48 exceptional mic preamps and 16 line outputs in a compact 5U chassis, it propels your SQ, Avantis, or dLive console to new heights of connectivity. Don't compromise on fidelity: give your setup the 96kHz resolution it deserves with near-zero latency.
This content will be shared across all product pages.
The Mixing Authority: Why the GX4816 is indispensable
In a world where the complexity of stage patches is constantly increasing, the GX4816 stands out as the ultimate centralization solution. For Quebec musicians and sound engineers, it solves a major problem: managing massive inputs/outputs without loss of definition.
Placed on stage or in the control room, it eliminates long and expensive analog cabling with a simple Cat5e connection. Whether you're managing a full orchestra or a complex festival, the GX4816 acts as the beating heart of your audio network, delivering the transparent sonic signature for which Allen & Heath is renowned.
Full Technical Specifications
Inputs and Outputs (I/O)
| Component | Quantity | Type / Details |
| Mic/Line Inputs | 48 | Balanced XLR inputs, fully recallable preamps |
| Line Exits | 16 | Balanced XLR |
| Sampling rate | 96kHz | Native high-fidelity resolution |
| Connection port | 1 | Port GX (Link to Console or SLink) |
| DX Expansion Ports | 2 | DX1, DX2 (For DX or ME expanders) |
| ME compatibility | Yes | Direct connection via DX ports or dedicated ME port |
Physical and Electrical Characteristics
| Attribute | Specification |
| Format | 19-inch rack mount |
| Rack Space | 5U |
| Dimensions (LxWxH) | 482.6 x 255 x 221.2 mm |
| Weight | 8 kg (17.6 lbs) |
| Food | 100-240V AC, 50/60Hz |
| Maximum consumption | 80W |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
Audio Performance
| Setting | Value |
| Input noise (EIN) | -127dB with 150Ω source |
| Entry fee | +5 to +60dB, in 1dB increments |
| Input pad | -20dB (Active via software) |
| Input impedance | >4kΩ (Pad out), >10kΩ (Pad in) |
| Maximum output level | +22dBu |
| Residual output noise | -92dBu (Mute, 20Hz-20kHz) |
Comparative Analysis
Based on consensus from Sound on Sound and Gearspace.
| Alternative Product | Market Segment | Comparative Analysis | Available at Garage à Musique |
| Allen & Heath DX168 | Portable Expander | More compact (8U), but with a much lower I/O density. Ideal for localized additions. | /shop/product/ah-dx168 |
| Allen & Heath AR2412 | Stagebox 48kHz | Cheaper, but limited to 48kHz (dSNAKE protocol). Incompatible with the GX's native 96kHz. | /shop/product/ah-ar2412 |
| Midas DL32 | Stagebox Pro | Excellent Midas preamps, but limited to the AES50 protocol (Incompatible with A&H without a card). | Product not listed |
| Behringer S32 | Budget I/O | Unbeatable price, but build quality and audio fidelity inferior to the GX4816. | /shop/product/behringer-s32 |
| Yamaha Rio3224-D2 | Dante Network | Industry standard for Yamaha. More expensive because it includes the Dante license natively. | Product not listed |
| Allen & Heath DX012 | Exits only | Outputs only (Analog/AES). Complementary to the GX4816 for broadcast systems. | /shop/product/ah-dx012 |
| PreSonus NSB 16.8 | StudioLive Ecosystem | Compact, but locked into PreSonus' AVB ecosystem. Fewer channels. | Product not listed |
| Focusrite RedNet MP8R | Dante High-End Network | High-quality mastering, but extremely high cost per channel compared to the GX4816. | Product not listed |
| DiGiCo D2-Rack | World Tour | Ultimate performance, but prohibitively expensive for most average fixed installations. | Product not listed |
| Allen & Heath DT168 | Dante version | Same format as the DX168 but with Dante. Less density than the GX4816. | /shop/product/ah-dt168 |
History & Evolution
The GX4816 marks a turning point in Allen & Heath's "Everything I/O" strategy. Launched to support the rise of the Avantis console, it bridges the gap between small DX expanders (16 inputs) and massive dLive racks. Historically, Allen & Heath used the dSNAKE protocol (48kHz), but with the arrival of XCVI FPGA processors, the need for a high-density unit capable of natively processing 96kHz became imperative. The GX4816 is the logical evolution, offering for the first time a "Cascade" port, allowing the addition of extra units without saturating the console's main port.
Cultural References & Artists
The Allen & Heath 96kHz ecosystem (SQ/Avantis/dLive) using the GX4816 can be found on countless stages worldwide:
Billie Eilish (Tournée "Where Do We Go?") - Utilisation massive de dLive et expandeurs série DX/GX pour la gestion des retours.
Finneas - Utilise la portabilité des expandeurs A&H pour ses configurations de tournée compactes.
Morrissey (Live 2023) - Fidèle à la signature sonore Allen & Heath.
Underworld - Performance live électronique nécessitant une latence ultra-faible.
Frank Ocean (Festivals) - Priorité à la transparence des préamplis.
Skrillex (Live setups) - Pour la robustesse du transport audio numérique.
Bring Me The Horizon - Gestion complexe des pistes et des micros live.
Royal Blood - Utilisation de la série SQ avec expandeurs pour un son de batterie massif.
Jacob Collier - Complexité harmonique nécessitant une clarté absolue.
Fifth Harmony - Tournées mondiales avec systèmes dLive.
Opéra de Sydney - Installation fixe utilisant les protocoles GX/DX pour la distribution audio.
The 1975 - Racks I/O Allen & Heath pour la polyvalence.
Vulfpeck - Sessions live capturées avec la fidélité des préamplis A&H.
Festival de Jazz de Montréal - Déploiement régulier de consoles SQ et racks GX sur les scènes satellites.
Place des Arts (Montréal) - Systèmes d'appoint souvent configurés avec des expandeurs haute densité Allen & Heath.
Augmented FAQ (Expert's opinion)
Puis-je utiliser le GX4816 avec une console Qu-16 ? Non. La série Qu fonctionne en 48kHz via dSNAKE. Le GX4816 est un expandeur 96kHz conçu pour SQ, Avantis et dLive.
Quelle est la longueur maximale du câble Cat5e vers le GX4816 ? La limite est de 100 mètres. Nous recommandons un câble blindé (STP) de haute qualité pour éviter toute interférence.
Peut-on chaîner deux GX4816 ensemble ? Le GX4816 possède des ports DX pour ajouter des DX168 ou DX164-W, mais vous ne pouvez pas "daisy-chain" deux GX4816 directement entre eux. Ils doivent se connecter à des ports SLink/GX séparés sur la console.
Est-ce que les entrées sont protégées contre les alimentations fantômes accidentelles ? Oui, chaque entrée XLR est indépendante et gère le +48V via le logiciel de la console avec une protection de circuit robuste.
Le ventilateur est-il bruyant pour une utilisation en studio ? Non, il est conçu pour être discret. En utilisation normale, il est pratiquement inaudible, ce qui le rend idéal pour les cabines de prise de son.
Ai-je besoin d'une carte optionnelle pour le connecter à ma SQ-5 ? Non, il se branche directement dans le port SLink intégré de la console.
Le port ME est-il compatible avec les systèmes de monitoring d'autres marques ? Il est spécifiquement optimisé pour le système Allen & Heath ME-1 et ME-500.
Le GX4816 supporte-t-il le protocole Dante ? Non nativement. Pour du Dante, il faut regarder vers la série DT (comme le DT168) ou ajouter une carte Dante à votre console.
Les préamplis sont-ils les mêmes que sur la dLive ? Ils partagent la même philosophie de design haute fidélité 96kHz, offrant une transparence quasi identique.
Qu'arrive-t-il en cas de déconnexion accidentelle du câble réseau ? L'audio coupe instantanément, mais les réglages de gain et de patch sont mémorisés. La reconnexion est ultra-rapide (quelques secondes).
