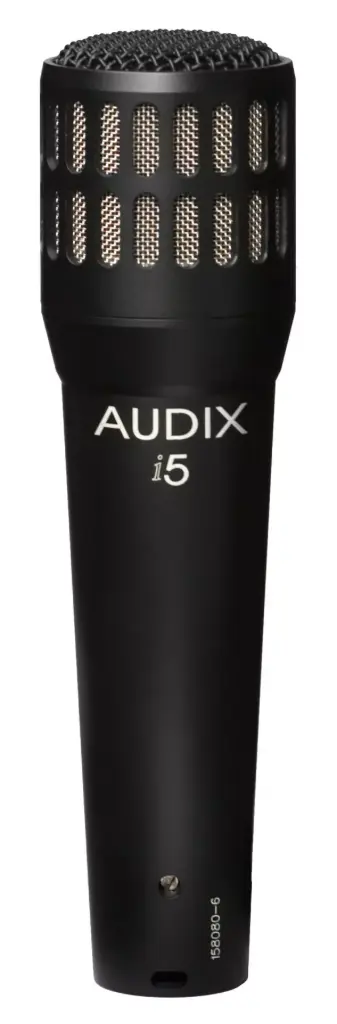

Audix i5 Cardioid Dynamic Instrument Microphone
The i5 is a cardioid dynamic instrument mic, the one you clip to a snare, push up against a guitar cab or aim at a trumpet bell. Compact and built in cast zinc, it takes 140 dB SPL and needs no power at all.
What sets it apart
- Cardioid, keeps stage spill in check
- VLM Type B diaphragm, 50 Hz to 16 kHz response
- 140 dB SPL without breaking up
- Dent-resistant steel grille
On snare and toms
Audix suggests starting 2 inches above the head, capsule aimed at the middle of the drum. Tilt it toward the rim to bring in more crack; some engineers set it almost on the head for a very tight sound. On a tom or conga, move in for attack and back off to let the overtones ring. The cardioid pickup helps keep each part of the kit separate.
Guitar, bass and horns
On a cab, set it 1 to 2 inches from the grille cloth at 90 degrees, facing the speaker: toward the edge of the cone the tone gets rounder, toward the centre it gets brighter. For trumpet or sax, Audix suggests 1 to 3 inches from the bell on a loud stage, farther for jazz or classical. Keep 2 to 3 feet between two mics to avoid phase trouble.
Specifications
| Type | Dynamic, VLM Type B diaphragm |
|---|---|
| Polar pattern | Cardioid |
| Frequency response | 50 Hz to 16 kHz |
| Max SPL | 140 dB |
| Off-axis rejection | More than 23 dB |
| Impedance | 280 ohms |
| Weight | 248 g |
| Included | MC1 clip, pouch |
What it's for
- Snare, toms, percussion
- Guitar or bass cab
- Trumpet, flute, woodwinds
- Vocals and speech when needed
Compared with other manufacturers
Other dynamic instrument mics:
| Manufacturer | Model | Key trait |
|---|---|---|
| Audix | i5 | Cardioid, zinc body, 140 dB SPL |
| Shure | SM57 | Cardioid dynamic instrument mic |
| Sennheiser | e 906 | Supercardioid, designed for guitar amps |
| Audio-Technica | ATM650 | Hypercardioid dynamic instrument mic |
Frequently asked questions
- Can the i5 stand in for an SM57 on snare?
- It fills the same role: dynamic, cardioid, compact. Snare, toms and percussion are exactly what Audix has in mind for it.
- How should I place it on a guitar amp?
- 1 to 2 inches from the grille cloth at 90 degrees; nearer the speaker's centre for highs, nearer the edge for a fatter tone.
- Can phantom power damage it?
- No. The i5 does not need it, and Audix states it is unaffected if phantom stays switched on.
