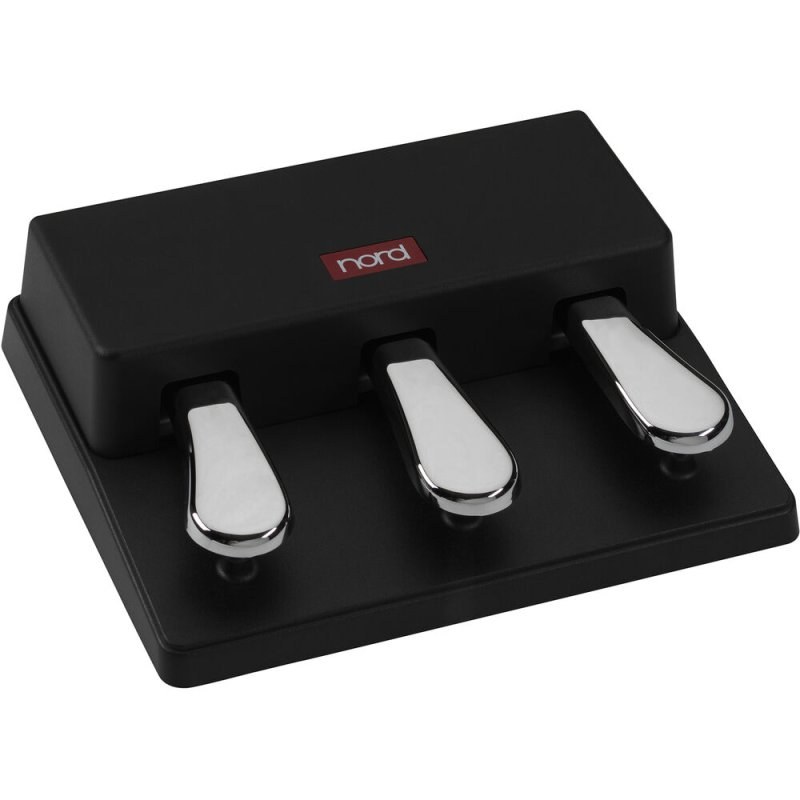

Nord Triple Pedal 2 (TP2) — Triple Pedal with Continuous Sensors
Nord's premium triple pedal, fitted with continuous sensors for fine dynamic control. Half damping, Pedal Noise and assignable functions; it connects to the 5-pin DIN input of the Nord Piano 6, Grand 2 and Stage 4.
On an acoustic piano, the pedal is never just fully down or fully up: everything happens in between. The Nord Triple Pedal 2 (TP2) is a triple pedal with continuous sensors, designed by Nord for its Piano 6, Grand 2 and Stage 4. Each pedal reads its position continuously, which makes half damping faithful and also lets you give it other jobs.
Highlights
- Continuous sensors: Nord specifies them for optimal dynamic control.
- Half damping and Pedal Noise: both of Nord's piano features are supported.
- Assignable functions: Layer Scene II, Pump, Tap Tempo, Synth Vibrato, program up or down, rotor speed.
- 5-pin DIN connector: the dedicated Triple Pedal input of compatible instruments.
- Anti-slip mat: a rubber mat is supplied.
Specifications
| Type | Triple pedal with continuous sensors |
|---|---|
| Piano features | Half damping, Pedal Noise |
| Assignable functions | Layer Scene II, Pump, Tap Tempo, Synth Vibrato, Program Up/Dn, Rotor Speed |
| Connection | 5-pin DIN (Triple Pedal input) |
| Included | Non-slip rubber mat |
| Nord instruments listed | Nord Piano 6, Nord Grand 2, Nord Stage 4 |
Before you buy: check your instrument
Nord lists the TP2 for three instruments only: the Nord Piano 6 and the Nord Grand 2, which already ship with it in the box, and the Nord Stage 4, which takes it on its 5-pin DIN input. It therefore does not replace a jack-type sustain pedal. For other Nord Stage and Nord Piano models, and for the Nord Electro 7, Nord offers the first-generation Triple Pedal (TP1) instead. Buying the TP2 separately mostly makes sense for a Stage 4, or to replace the one that came with a Piano 6 or a Grand 2.
Alternatives from other brands
| Model | Type | Distinctive feature |
|---|---|---|
| Nord Triple Pedal 2 (TP2) | Triple pedal | Continuous sensors, assignable functions, 5-pin DIN |
| Roland RPU-3 | Triple pedal | Three separate ¼" outputs; also controls instrument functions |
| Casio SP-34 | Triple pedal | Half-damper sustain; for Privia PX-S and CDP-S models |
Frequently asked questions
- Does the TP2 work with a Nord Stage 3?
- Nord does not list it for the Stage 3: the TP2 is listed for the Piano 6, Grand 2 and Stage 4 only. For other Nord instruments, the TP1 is the one offered.
- Where does it plug in on the Nord Stage 4?
- Into the Triple Pedal input, a 5-pin DIN connector. The ¼" jack sustain input takes the TP1 or a switch-type pedal instead.
- Which functions can be assigned to it?
- Nord lists Layer Scene II, Pump, Tap Tempo, Synth Vibrato, program change and rotor speed.
- Do I need to buy it with a Nord Piano 6?
- No. The Piano 6 and the Grand 2 ship with the Triple Pedal 2.
