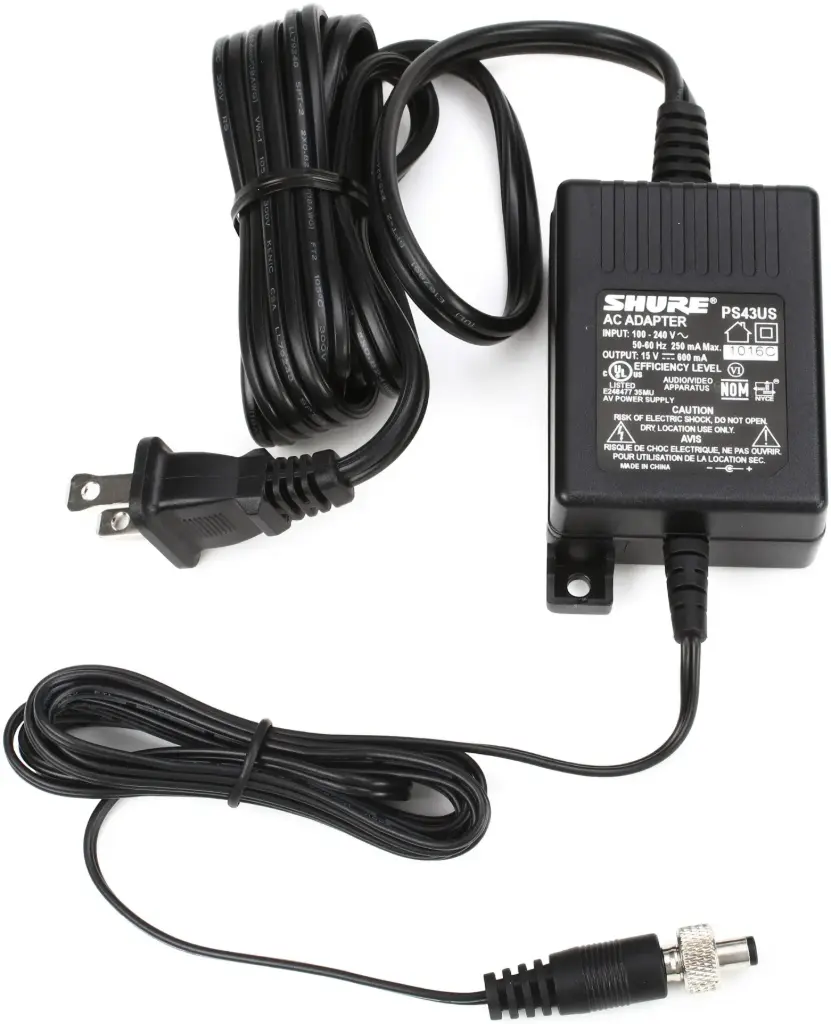

Shure PS43US 15 V Power Supply for Wireless Receivers
The Shure PS43US is an external 15 V DC power supply that runs several Shure wireless receivers, including the GLXD4 and the ULXD4, as well as the P9T wireless transmitter. A receiver whose power supply was left in another room is useless: this one brings it back to life.
What sets it apart
- 15 V DC output at 0.6 A, or 9 W
- Universal input from 100 to 240 V AC, 50 to 60 Hz
- Only 0.1 W drawn with no load attached
- Two mounting tabs built into the housing for permanent installs
What it powers
Shure presents the PS43 as the supply for two of its wireless mic receivers, the GLXD4 (GLX-D line) and the ULXD4 (ULX-D digital line), as well as its P9T wireless transmitter. Its U.S. page also lists the SLXD4+ and SLXD4D+ receivers from the SLX-D+ line among compatible products. The user guide for the GLXD4+ receiver, from the GLX-D+ line, starts the hookup with the PS43: that receiver needs 14.5 to 17 V at 600 mA, and the PS43 delivers 15 V at 0.6 A.
Built to stay plugged in
The PS43 is a switching power supply. Shure lists an average efficiency of 84.2% and a draw of 0.1 W when nothing is connected, meeting U.S. Department of Energy Level VI. Its two mounting tabs let it be screwed under a table or inside a control-room cabinet instead of hanging from its cord.
What Shure asks
The manufacturer's guide says not to expose it to water or moisture, not to block its ventilation openings and not to install it near a heat source. It recommends unplugging it during lightning storms. There are no user-serviceable parts inside.
Specifications
| Type | External switching AC/DC power supply |
|---|---|
| Input | 100 to 240 V AC, 50 to 60 Hz |
| Output | 15 V DC, 0.6 A (9 W) |
| Average efficiency | 84.2% |
| Efficiency at 10% load | 76.84% |
| No-load consumption | 0.1 W |
| Operating temperature | 0 to 45 °C |
| Mounting | Two built-in tabs |
What it's for
- Replacing the lost or damaged supply of a GLXD4+ or ULXD4 receiver
- Keeping a second supply in the road case while the first stays installed
- Powering a P9T wireless transmitter in a permanent install
Compared with other manufacturers
Other wireless receiver power supplies from another manufacturer. Figures published by the manufacturer.
| Model | Output | Intended for |
|---|---|---|
| Shure PS43US | 15 V DC, 0.6 A | GLXD4 and ULXD4 receivers, P9T transmitter |
| Sennheiser NT 2-3-US | 13 V DC | Stationary evolution wireless G3 receivers and transmitters |
| Sennheiser NT 12-5 CW+ | 12 V DC, 500 mA | XSW 1, XSW 2, XSW IEM and ew G4 100 |
Frequently asked questions
- Which power supply does a GLXD4 or ULXD4 receiver take?
- The PS43. Shure names it for both receivers, and the GLXD4+ user guide starts the hookup with it.
- Does the PS43 replace the PS42?
- Yes. Shure's Japanese page presents the PS43 as the successor to the PS41 and PS42, the power supplies the brand sold before it.
- PS43US, PS43E, PS43UK: what's the difference?
- Shure sells the PS43 under a part number specific to each market: PS43US on its U.S. site, PS43J in Japan, PS43CHN in China. Its guide gives the same 15 V output for the PS43.
