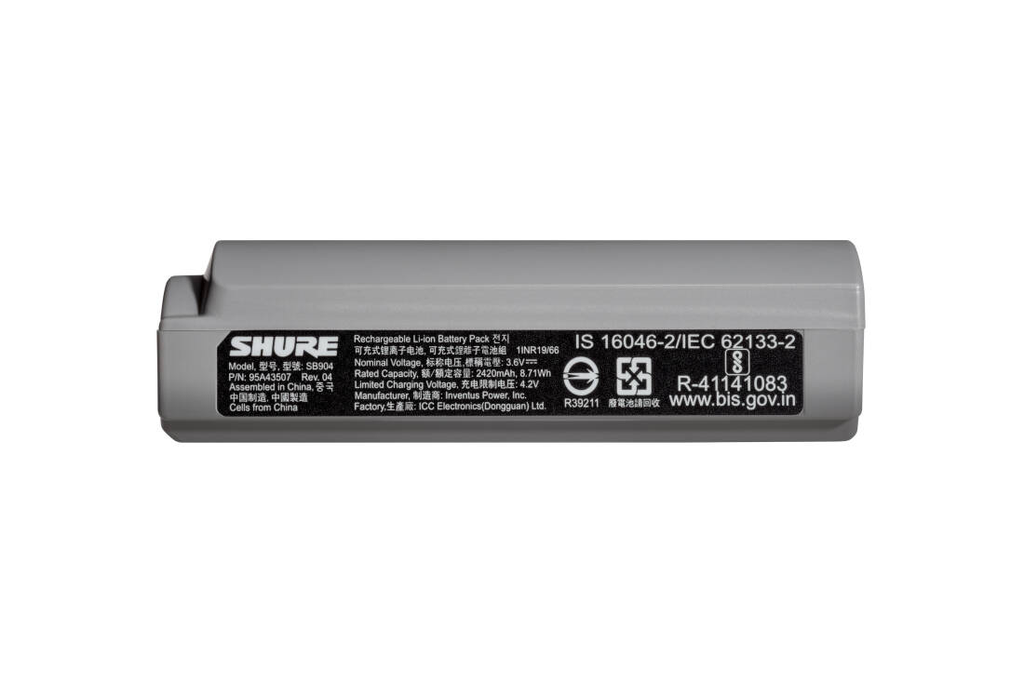

Shure SB904 Rechargeable Lithium-Ion Battery for GLX-D+
The Shure SB904 is the rechargeable lithium-ion battery for GLX-D+ wireless transmitters, the GLXD2+ handheld as well as the GLXD1+ bodypack. Shure rates it at up to 12 hours of runtime, and a quarter hour of charging gives back about an hour and a half of playing.
What sets it apart
- Up to 12 hours of runtime according to Shure
- Quick charge: 15 minutes for about 1 h 30 of use
- Time remaining shown in hours and minutes
- Three ways to recharge: receiver, sled charger or the transmitter's USB-C port
- No memory effect: no need to drain it before recharging
How much charge for how much show
The user guide for the GLX-D+ system, which runs on two radio bands, 2.4 and 5.8 GHz, gives a table measured in the 5.8 GHz band: 15 minutes of charging give up to 1 h 30 of runtime, 30 minutes up to 3 h, one hour up to 6 h, and three hours up to 11 h 30. Storage time and heat reduce that maximum. A new battery gets a full charge before its first use.
Where to charge it
The GLX-D+ receiver has a charging bay that works as soon as it is plugged in, even when switched off. The SBC10-904 single-battery sled charger recharges it outside the transmitter, from AC power or a USB port. Finally, the transmitter charges through its USB-C port; Shure notes that it passes neither audio nor radio signal while the charging cable is connected.
Keeping it healthy
Shure recommends storing it between 10 and 25 °C, charged to about 40% for a long break, and checking the charge every six months. A transmitter that no longer detects its receiver switches itself off after about an hour, which spares the battery forgotten in a mic.
Specifications
| Chemistry | Lithium-ion |
|---|---|
| Target transmitters | GLX-D+ (GLXD1+ bodypack, GLXD2+ handheld) |
| Rated runtime | Up to 12 hours |
| Quick charge | 15 minutes for about 1 h 30 |
| Charging | GLX-D+ receiver bay, SBC10-904 charger, transmitter USB-C port |
| Recommended storage | 10 to 25 °C, about 40% charge |
What it's for
- Spare battery to run two shows back to back without waiting for a recharge
- Replacing a GLX-D+ battery that no longer lasts the evening
- Keeping a charged battery in the tech's bag for rehearsals
Compared with other manufacturers
Other rechargeable batteries for wireless transmitters from other manufacturers. Figures published by each manufacturer.
| Model | For | What the manufacturer publishes |
|---|---|---|
| Shure SB904 | GLX-D+ transmitters | Up to 12 h; 15 min of charging for 1 h 30 |
| Sennheiser BA 70 2.2 | Evolution Wireless Digital SK and SKM-S transmitters | 2,250 mAh, 3.8 V |
| RØDE LB-1 | TX-M2 transmitter and VideoMic Pro+ | 10 h in the TX-M2; full charge in 3 h over micro-USB |
Frequently asked questions
- How long does an SB904 battery last?
- Up to 12 hours according to Shure. The GLX-D+ system user guide specifies that storage time and heat reduce that maximum runtime.
- How long does it take to recharge the SB904?
- Shure's table ties three hours of charging, in the receiver or from AC power, to maximum runtime. Fifteen minutes already give about an hour and a half of use.
- Which charger works with the SB904?
- The GLX-D+ receiver's charging bay, the SBC10-904 single-battery sled charger sold separately, or the transmitter's USB-C port with a USB charger.
