PreSonus StudioLive Series III Rack Mounting Kit
The PreSonus Series III Rack Mounting Kit is a rackmount kit for StudioLive Series III digital mixers. It lets you install a 16, 24, 32SC, 32SX, 32S or 64S console in a control-room rack or a case, so it stays put, wired and protected from knocks.
What sets it apart

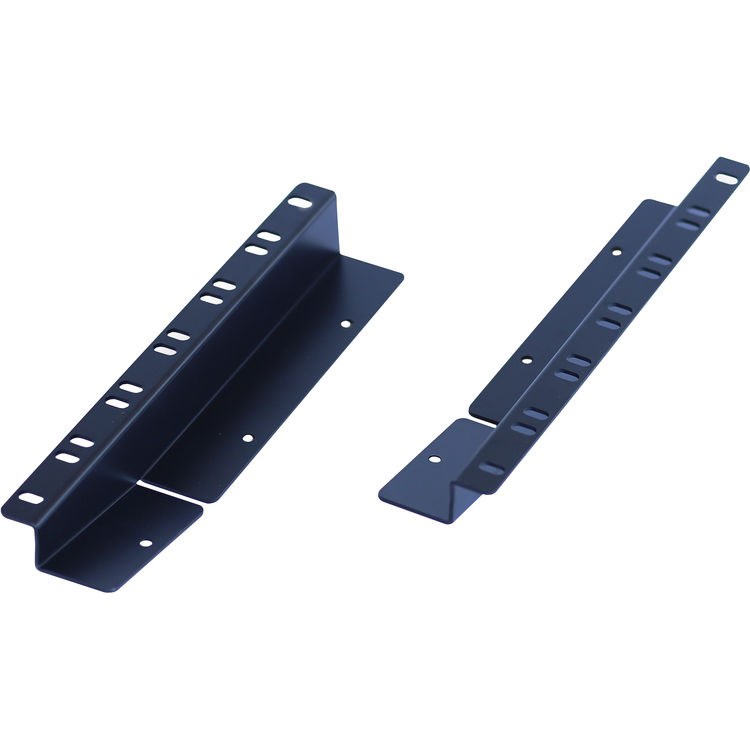

- 6U rack ears, left and right, with mounting screws
- Fits the six Series III consoles on the PreSonus list
- Steel construction, black finish
- Same depth on every Series III console: one kit
Which console fits which rack
PreSonus is clear: among Series III mixers, only the StudioLive 16 and the StudioLive 32SC fit in a standard 19-inch rack case. The others (24, 32SX, 32S, 64S) use this kit for custom installations, such as a control-room cabinet built to their width.
Rack-mounted, the console presents its depth on the rack face: 22.972 inches on every model. PreSonus therefore recommends allowing at least 14U of space.
Specifications
| Compatible consoles | StudioLive 16, 24, 32SC, 32SX, 32S, 64S (Series III) |
|---|---|
| Contents | 1 left ear, 1 right ear, mounting screws |
| Ear height | 6U |
| Console depth | 22.972 in. (identical on all Series III) |
| Recommended space | 14U minimum |
| Material | Black steel |
What it's for
- Touring rack case for a StudioLive 16 or 32SC
- Fixed control-room cabinet in a church, theatre or community hall
- Permanently installed monitor-mix position
Compared with other manufacturers
Makers of digital and analog consoles of similar size also provide a rackmount option.
| Manufacturer | Solution | For | Good to know |
|---|---|---|---|
| PreSonus | Series III Rack Mounting Kit | Six Series III consoles | 6U ears, 14U recommended |
| Allen & Heath | SQ-5 Rack Kit | SQ-5 | Rackmount over 12U |
| Mackie | 1642VLZ4 Rackmount Kit | 1642VLZ4 | Standard 19-inch rack, brackets and screws |
| Yamaha | TF1 console | TF1 | Yamaha describes it as rack mountable |
Frequently asked questions
- Does this kit fit the StudioLive 32SC?
- Yes. The 32SC is on the PreSonus list, along with the 16, 24, 32SX, 32S and 64S.
- Can a StudioLive 24 or 32S go in a standard rack case?
- No, according to PreSonus: only the 16 and the 32SC fit a standard 19-inch case. The other models use this kit for custom installations.
- How much rack space should you plan?
- The mounted console presents its 22.972 inches of depth on the rack face: PreSonus recommends at least 14U.
