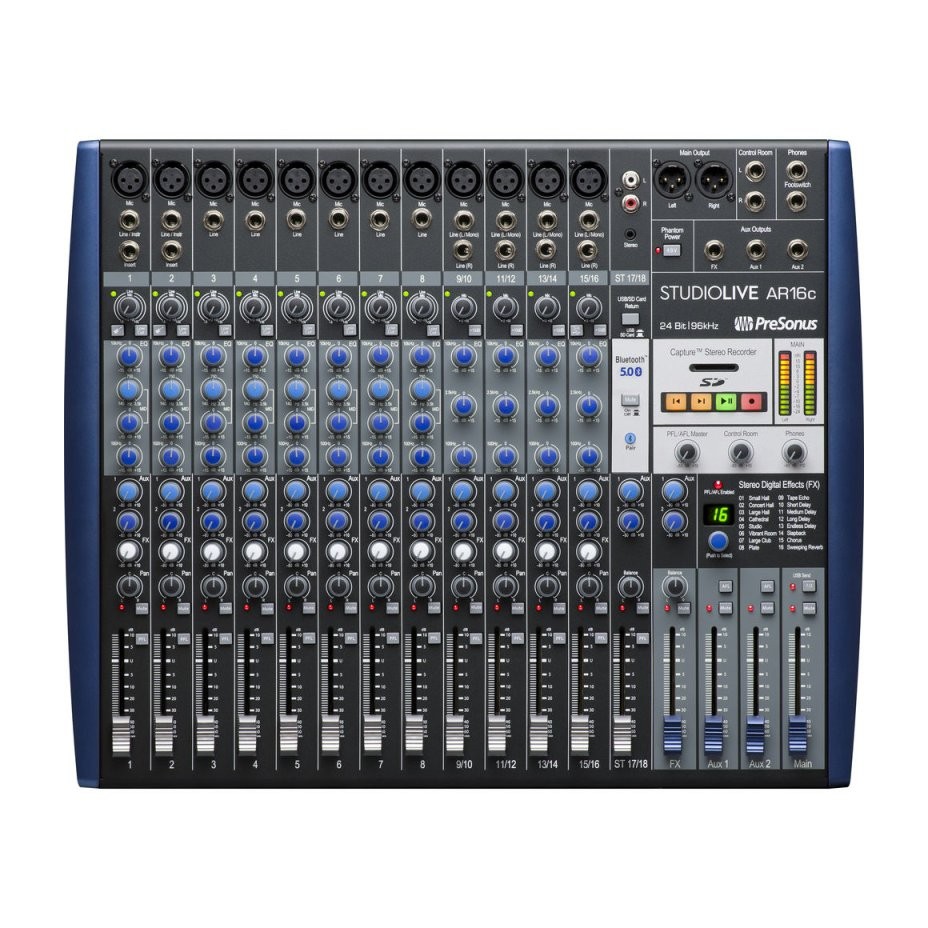

PreSonus StudioLive AR16c 18-Channel Analog Mixer with USB-C Interface
The PreSonus StudioLive AR16c is an 18-channel analog mixer paired with an 18 x 4 USB-C audio interface. With 12 mic preamps, it handles a full band, drums included, and records every instrument to its own track during the show.
What sets it apart
- 12 XMAX mic preamps, 16 balanced line inputs
- 18 x 4, 24-bit/96 kHz USB 2.0 interface over USB-C
- Rackmount kit included
- Stereo SD recorder and WAV or MP3 file playback
- Stereo Super Channel with Bluetooth for background music
- 3-band analog EQ and effects with 16 presets
Enough inputs for a full band
Twelve XMAX preamps are enough to put four or five mics on a drum kit and still have room for vocals, bass and guitars. Sixteen balanced line inputs take keyboards and other sources, and a +10 dB boost on the stereo channels wakes up vintage synths and low-output broadcast mics.
Every input goes to its own track on the computer, along with the main mix, up to 96 kHz. Capture records it all in one click, and the final mix then happens in Fender Studio Pro, included with the console.
Built to stay in place
Unlike the AR12c and AR8c, the AR16c comes with its rack ear kit: it goes into a control-room cabinet or a road case straight out of the box. Its power supply is internal, on a standard IEC cord, with no external brick to lose.
The SD card records the stereo mix without a computer and plays WAV or MP3 files prepared in advance: walk-in music, backing tracks or rehearsal material.
Specifications
| Channels | 18 (analog) |
|---|---|
| Mic preamps | 12 XMAX |
| Line inputs | 16 balanced; 2 instrument inputs |
| Inserts | Channels 1 and 2 |
| Audio interface | 18 x 4, 24-bit/96 kHz, USB 2.0 over USB-C |
| SD card | Stereo mix recording, WAV and MP3 playback |
| Super Channel | Channels 17 and 18: Bluetooth, RCA, 1/8 in., SD or USB playback |
| Monitor buses | 2, balanced TRS outputs |
| Rackmount | Kit included |
| Power | Internal, 100 to 230 VAC, IEC |
| Dimensions | 480 x 397 x 90 mm |
| Weight | 6.4 kg |
What it's for
- Bands that run their own sound with a fully miked drum kit
- Churches or schools installing the console in a control-room cabinet
- Multitrack recording of rehearsals and shows
- Project studios that want 12 preamps without a digital console
Compared with other manufacturers
Among 16- to 18-channel mixers with recording, here's what other manufacturers offer.
| Manufacturer | Model | Preamps | Recording |
|---|---|---|---|
| PreSonus | StudioLive AR16c | 12 XMAX | USB-C 18 x 4 at 96 kHz, stereo SD, rack kit included |
| Tascam | Model 16 | 10 Ultra HDDA | 16 tracks to SD card, 16 x 14 USB interface |
| Mackie | Onyx16 | 12 Onyx | Multitrack over USB or to SD card, up to 24-bit/96 kHz |
| Mackie | ProFX16v3 | 11 Onyx | 2 x 4 USB up to 192 kHz, 24 GigFX effects |
Frequently asked questions
- Is the rack kit included with the AR16c?
- Yes. The PreSonus manual specifies that the AR16c is the only ARc console that ships with its rack ear kit.
- What power supply does the AR16c use?
- An internal power supply, 100 to 230 VAC, with a standard IEC cord.
- AR16c or Tascam Model 16?
- The Model 16 records 16 tracks straight to SD card. The AR16c has 12 preamps and records every channel to the computer at 96 kHz, with the stereo mix going to SD card.
- What are the main AR16c specs?
- 18 channels, 12 XMAX preamps, 16 line inputs, an 18 x 4 USB-C interface at 96 kHz, 480 x 397 x 90 mm and 6.4 kg.
