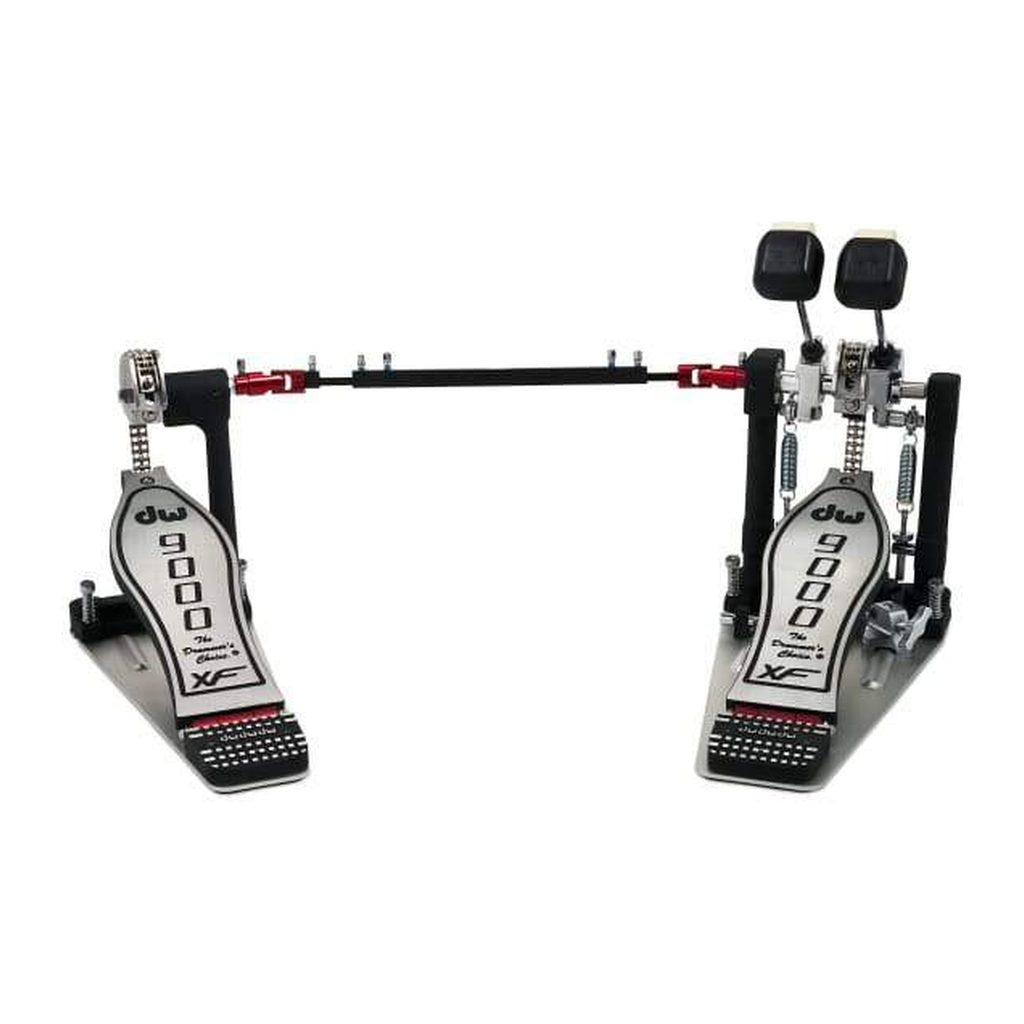

DW 9002XF Double Bass Drum Pedal — Extended Footboards
The 9002XF is a double bass drum pedal with both footboards extended. On a double, that detail carries real weight: the left foot, often less practised, gets the same surface to work on as the right, and both sides end up responding the same way.
What sets it apart
- Two extended footboards, right and left
- Patented single-post auxiliary base, US patent 5396826
- EZ Infinite Adjustable cam, continuously adjustable on each pedal
- Floating rotor and floating pivot spring
- Tri-Pivot toe clamp with three contact points
- Two-way beaters, felt and hard plastic
- DW Deluxe double pedal bag included
The real problem with a double pedal: floor space
Between the hi-hat and the bass drum, space is tight. An auxiliary pedal on a wide base forces the hi-hat back, and the left foot ends up travelling between two positions that are too far apart.
The single-post base on the 9002XF solves this through geometry: less material to the left of the footboard, so the auxiliary pedal slides in closer to the hi-hat stand. The drummer keeps their usual seating position instead of rearranging the whole kit around the double pedal.
Why both footboards should be identical
On a double, the ear hears any asymmetry right away. If the weak foot works on a shorter board, or farther from the pivot point, its strokes come out lighter and slightly late. The drummer compensates by forcing, and fatigue sets in faster than precision.
Extending both footboards removes that asymmetry at the source: the surface is the same under each foot, and the less trained side stops working in different conditions from the other.
Adjustment is done pedal by pedal
The two cams are adjusted separately. That is intentional: many drummers need a little more acceleration on the weak side to even out the power, or a slightly tighter spring on one side only. You tune the pedal the way you tune a drum, by listening.
Specifications
| Configuration | Double pedal, primary on the right |
|---|---|
| Footboards | Extended on both pedals |
| Auxiliary base | Patented single post, smaller footprint toward the hi-hat |
| Cam | EZ Infinite Adjustable, set separately on each pedal |
| Hinge | Delta II, double ball bearings |
| Transport | DW Deluxe double bag, included |
What it is for
- Double pedal work in metal, heavy rock and fusion
- Drummers whose left foot lacks surface to work on
- Tight setups between hi-hat and bass drum
- Touring, with the included double bag
- Evening out the right and left feet
Compare with other manufacturers
Long-footboard double pedals from other manufacturers:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Tama | Speed Cobra 910 double | Long footboard as standard, Tama's own base and drive shaft |
| Pearl | Eliminator Redline double | Interchangeable screw-on cams rather than one adjustable cam |
| Sonor | Perfect Balance double | Direct drive, designed without a baseplate under the foot |
| Gibraltar | Stealth G Class double | Folding drive shaft, designed first for storage |
Frequently asked questions
- Does the auxiliary pedal get in the way of the hi-hat stand?
- That is exactly what the single-post base addresses. By removing material on the left side, it lets the auxiliary pedal sit closer.
- Can the two cams be set differently?
- Yes, each pedal is adjusted on its own. Many drummers give a little more acceleration to their less trained foot.
- Is the bag included?
- Yes. A DW Deluxe double bag comes with the pedal.
- Will a double pedal fit any bass drum?
- On a drum whose hoop takes a standard toe clamp, yes. In practice, the limit is the free width in front of the bass drum, not the drum itself.
