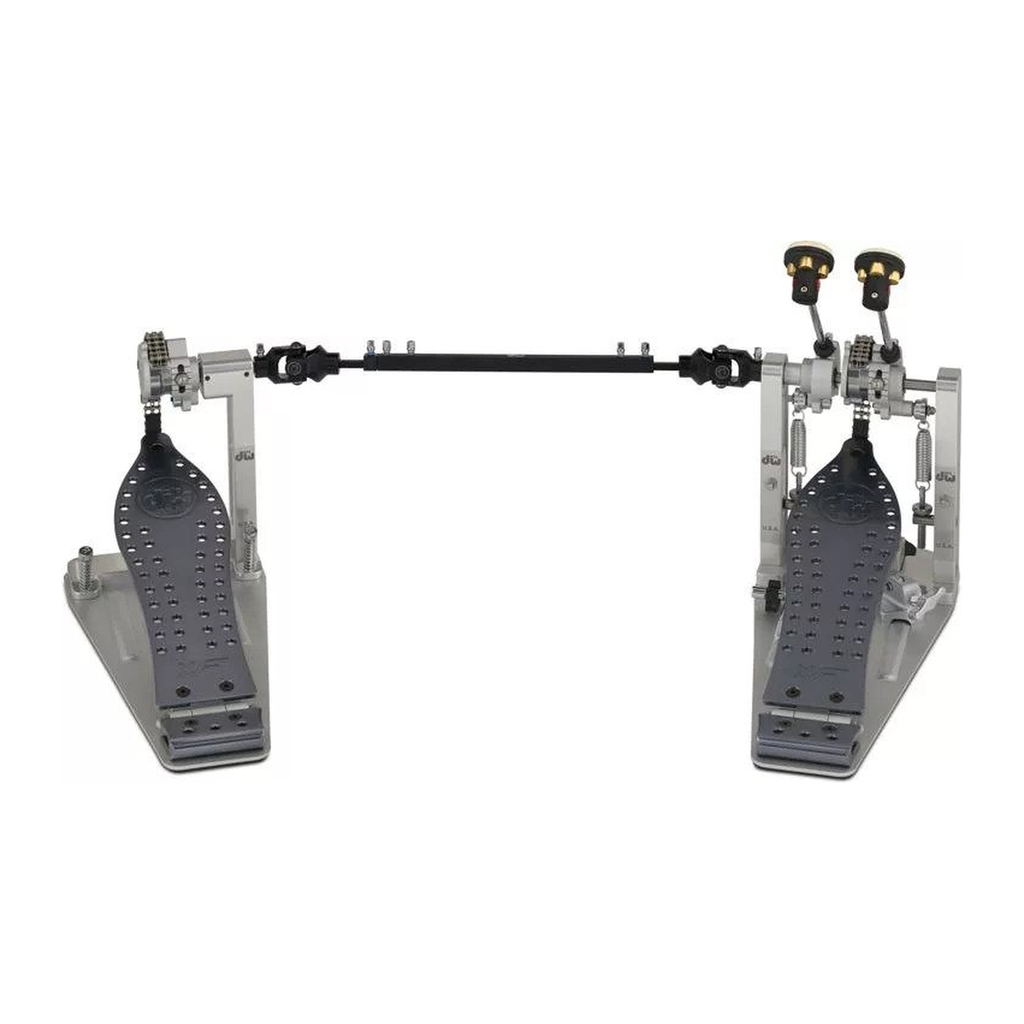

DW MFG MCD2 XF Double Bass Drum Pedal, Extended Footboards
The MCD2 XF is a chain-drive double kick pedal whose two footboards are longer than those of standard models. On a double pedal, the left foot gains the most from this: it works at an angle, and the extra surface gives it some margin.
What sets it apart
- Both footboards get the extended XF board
- Modified Contour heels, same footprint on the floor
- More surface for the left foot, which is often poorly positioned
- Longer lever on both beaters
- Chain and lever-operated cam
- Machined in the USA, aircraft-grade aluminum
The left foot does not sit like the right
On a double pedal, the right foot meets its footboard head-on, in line with your body. The left one comes in at an angle: it is offset to the outside, often with the knee more open, and it meets its footboard at a different angle.
Because of that asymmetry, the left foot rarely lands in the ideal spot. It slides forward or stays too far back. An extra inch of surface gives it a margin the right foot, which sits well, never needed.
Two long levers, the same tension
Lengthening both footboards changes the leverage on both sides at once. A pedal set up on short boards will therefore feel slightly stiffer at first after the change: your foot pushes farther from the axle and feels the spring more.
The fix is to back off both springs slightly, then play again. This readjustment takes five minutes and keeps you from deciding too quickly that the long board does not suit you.
Two long footboards and the hi-hat's space
Lengthening the left footboard moves it forward into an area already in demand: the one where the hi-hat stand puts its legs. That is where the conflict shows up on a tight setup, never on the right side.
The modified Contour heel keeps the footprint on the floor from growing, which solves part of the problem. For the rest, two moves are enough: turn the tripod legs away from the footboard's line, or switch to a two-legged hi-hat stand, which frees exactly the space the left half needs.
Specifications
| Footboards | Two extended footboards (XF) |
|---|---|
| Heel plates | Modified Contour, on both halves |
| Footprint | Standard-size baseplates |
| Drive | Chain |
| Format | Double pedal |
| Material | Aircraft-grade aluminum |
What it is for
- Two-foot playing with the slide technique on both sides
- Drummers whose left foot never finds its place
- Large shoe sizes, where a standard board lacks surface
- Tight stages, since the footprint on the floor stays the same
- Moving up from a double pedal with short boards
Compare with other manufacturers
Other manufacturers' long-board double pedals:
| Manufacturer | Comparable model | What differs |
|---|---|---|
| Tama | Speed Cobra 910 double | Long board fitted as standard, with no short version |
| Pearl | Demon XR double | Length set at the design stage, with no short variant |
| Yamaha | DFP9500C | Single length, with adjustments focused on angle and height |
| Gibraltar | 4000 Series double | Standard board, aimed at a different segment |
Frequently asked questions
- Are both footboards extended?
- Yes, both the primary half and the auxiliary half get the XF footboard.
- Does the pedal feel stiffer with the longer boards?
- A little, because your foot pushes farther from the axle. Backing off both springs slightly restores the feel.
- Does it take up more room on the floor?
- No. DW specifies modified Contour heels, which allow longer footboards without enlarging the footprint on the floor.
- What changes compared with the standard MCD2?
- The two footboards and their heels. The single-post cast frame, the cam and the springs are the same.
